General Conveyor Belts

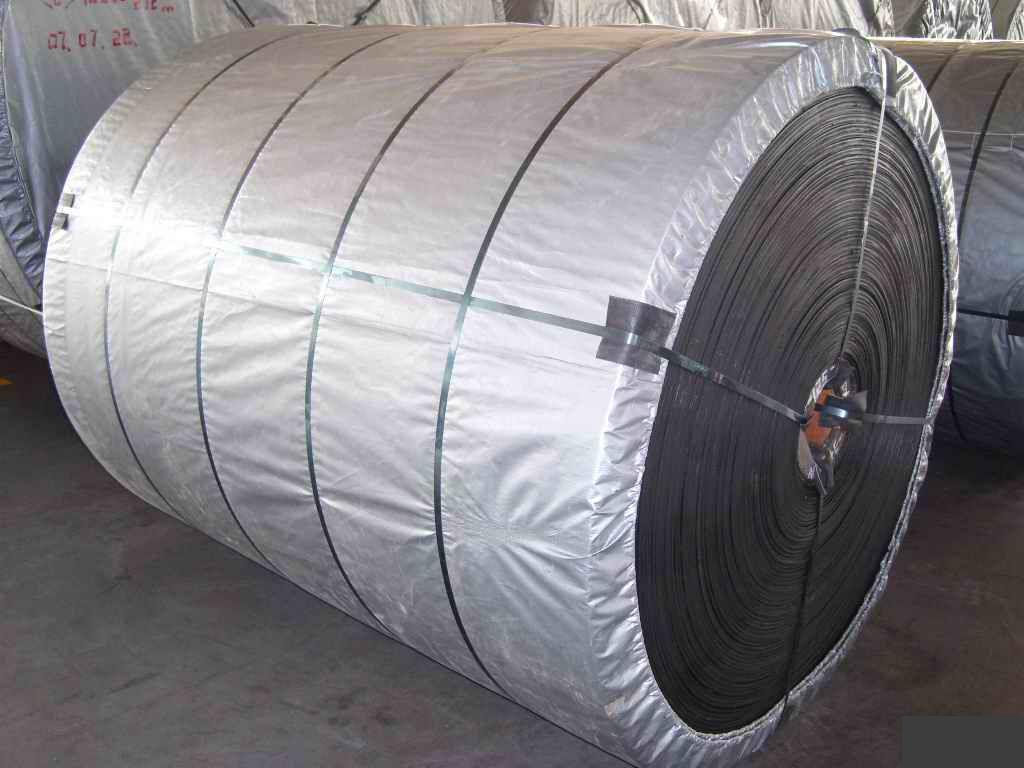

General Conveyor Belts  The general fabric conveyor belt is made of EP, NN or Cotton fabric and finished through the processes of calendering, firming and vulcanizing, etc.  It is suitable for conveying in normal temperature various non-corrosive pointless lumps, granular or powders such as coal, coke, sand and cement in bulk or packaged.  We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.

Standards Cover Rubber Adhesion Tensile Strength Elongation at break Abrasion Cover to Ply Cover to Ply Ply to Ply DIN 22102 Mpa % mm3 N/mm (≤1.5mm) N/mm (>1.5mm) N/mm DIN 22102-Z 15 350 250 3.5 4.5 5 DIN 22102-W 18 400 90 3.5 4.5 5 DIN 22102-Y 20 400 150 3.5 4.5 5 DIN 22102-X 25 450 120 3.5 4.5 5

Standards Cover Rubber Adhesion Tensile Strength Elongation at break Abrasion Cover to Ply Cover to Ply Ply to Ply AS 1332 Mpa % mm3 N/mm (≤1.9mm) N/mm (>1.9mm) N/mm AS 1332-N17 17 400 200 4 4.8 6 AS 1332-M24 24 450 125 4 4.8 6

Standards Cover Rubber Adhesion Tensile Strength Elongation at break Abrasion Cover to Ply Cover to Ply Ply to Ply RMA Mpa % mm3 N/mm (≤1.6mm) N/mm (>1.6mm) N/mm RMA-I 17 400 　 3 4.4 4 RMA-II 14 400 　 3 4.4 4
