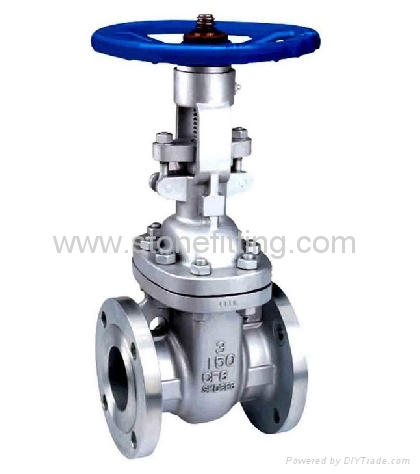

Gate Valve
Specifications
- Origin
- CHINA
- Price Term
- EX-Work
- Payment Term
- T/T
Gate Valve is a Pipe Fittings product. Key specs — Origin: CHINA; Price Term: EX-Work; Payment Term: T/T.
Product Description
Features: 1) Size: 1/2" -48"; 2) Pressure: 150lb-2500lb 3) Material: WCB, LCB, LC3, WC5, WC6, WC9, CA12A, CF8, CF8M AND SO ON.
4) Manufacture standards: API; BS4504, JIS, MSS, ISO, EN, DIN, NF 5) Actuator: Manual, gear, electric pneumatic and hydraulic 6) Face to face/end to end dimensions: ANSI B16.10; GB12221 7) Flange: ANSI B16.5, GB9112--9131; JB/T74--90 SH3006; HG20615--20635 8) Testing & inspection: API598; ZB J16006
Design and manufacture: API600 Face-to-face dimension: 36" and smaller to ASME B16.10 40" and larger to manufacture's standard Flanged end: 24" and smaller to ASME B16.5 26" and larger to ASME B16.47 series A B. W.
End: ASME B16.25 Shell wall thickness: 24" and smaller to API600 26" and larger to manufacture's standard 8"and smaller valves have a one-piece bonnet and yoke design 10"and larger valves have a split bonnet and yoke design.
Payment Terms︰ TT/LC
