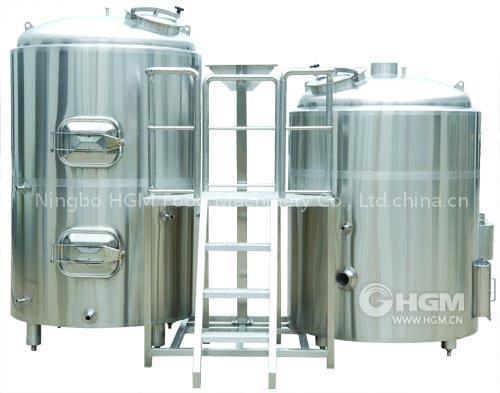

Gas direct-heated Brewhouse

HGMPTH-G 7&10&15bbl brew-house is designed to be heated with nature gas. It is a two vessels brew-house with Combi-tank (mash lauter tun & hot liquor tank ) and Kettle Whirlpool Tun as main brewing vessels, It is a style of single infusion micro brew-house. It brings many advantages for customers such as hotel, beer bar and micro breweries as takes nature gas as its heating source . Currently capacity is 7bbl,10bbl,15bbl per brew. The system is composed of : Main vessels:Combi-tank (mash lauter tun & hot liquor tank,15bbl tank with mashing agitator )kettle/ whirpool(direct gas fired chamber ) Other matched equipment:grant tank;heat exchangerand all necessary pumps, pipes, fittings, vales and accessories Main features:

• All vessels fabricated from high grade type 304 stainless steel.
• All vessels finished in highly polished stainless steel, all inner surface pickled and passivated completely.
• All brew-house vessel, pump plumbing and pumps included and pre-configured.
• Separate frame is fitted to be installed for pump, plate heat exchange, a complete platform to make brew-house vessels install perfectly. pipes, fittings, valves ready for plug and brew operation.
• Gas fired chamber is insulated with thick ceramic fire blanket to make the kettle high efficiency
• Quality sanitary stainless steel open impeller pumps.
• All wort lines utilize stainless steel butterfly valves.
• The specially designed low voltage control panel is mounted on the rear rail of the platform and offers an instant status of all brewery functions.
• Wedge wire or milled lauter plate has 0.65mm gaps and 13% open area for efficient filtrating and easy cleaning
• Upper surface of the lauter plate is in the same plane level with upper surface of manhole, that is easy for discharge the waste grain
