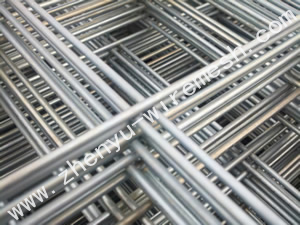

Galvanized Welded Wire Mesh Panels

Galvanized Welded Mesh Panels can be classified electro galvanized welded mesh panel and hot dipped galvanized welded mesh by galvanized method.

The wire fabric is made up of steel wires arranged in parallel fashion in two orthogonal directions, with the points of contact being welded between the wires by electrical welding process (spot welding) by welding machine.

The raw material for the manufacture of panels is the wire through cold rolling or by wire drawing using the hot-rolled wire produced in the steelworks.

Some Standard Welded Wire Mesh Panels Sizes

1.5mm Wire Diameter, 1/2" X 1/2" Mesh Opening

2mm Wire Diameter, 1" X 1" Mesh Opening

3mm Wire Diameter, 1" X 1" Mesh Opening

3mm Wire Diameter, 1-1/4" X 1-1/4" Mesh Opening

4mm Wire Diameter, 1-1/2" X 1-1/2" Mesh Opening

2mm Wire Diameter, 2" X 2" Mesh Opening

3mm Wire Diameter, 2" X 2" Mesh Opening

4mm Wire Diameter, 2" X 2" Mesh Opening

5mm Wire Diameter, 2" X 2" Mesh Opening

6mm Wire Diameter, 4" X 2" Mesh Opening

Special sizes can be custom made.

Please specify the following when ordering our panels or gratings

1: Center to center distance of the panel

2. Panel width

3.Panel length

4. Wire Diameter.
