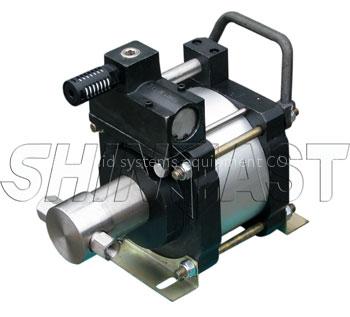

G Series Liquid Pump
Specifications
- Brand
- SHINEEAST
- Origin
- JINAN,CHINA
- Price Term
- FOB
G Series Liquid Pump is a Other Farm Machines product. Key specs — Brand: SHINEEAST; Origin: JINAN,CHINA; Price Term: FOB.
Product Description
Compact,rugged
Pressure range:4.8~320Mpa
Twelve pressure ratios available
Best price,high quality
ISO9001:2008
G series air driven liquid pumps are high pressure reciprocating plunger pumps of single acting,single air drive head model. Air drive pressure from 3bar (43.5 psi.) to 8bar(116 psi.) are suitable for application with high pressure requirement as operating pressures up to 3,200 bar(46,400 psi).
Key features
- One model available in 12 ratios
- Compatibility with a variety of liquids
- No electricity required and explosion proof
- No need for air line lubrication
- Aluminum bodies and wetted materials of carbon steel or stainless steel
- High quality seals, long service life available
- Rustproof and beautiful generous in blue colors with oxidation treatment applying to the aluminum components
- Robust, reliable, compact and easy to maintain proven design
- Wide range of pressure ratios meeting with different requirements
- G Series pumps come standard with side inlet
Technical parameters
Type | Pressure Ratio | MAX Outlet Pressure(bar)* | Connetion Inlet A | Connection Outlet B | MAX Flow (L/min) |
G6 | 6:1 | 48 | 1" | 3/4" | 29.91 |
G10 | 10:1 | 80 | 1" | 3/4" | 18.84 |
G16 | 16:1 | 128 | 1" | 3/4" | 12.05 |
G28 | 28:1 | 224 | 1/2" | 3/8" | 6.78 |
G40 | 40:1 | 320 | 1/2" | 3/8" | 4.71 |
G64 | 64:1 | 512 | 1/2" | 3/8" | 3.01 |
G80 | 80:1 | 640 | 1/2" | 3/8" | 2.44 |
G100 | 100:1 | 800 | 3/8" | 3/8" | 1.92 |
G130 | 130:1 | 1040 | 3/8" | 3/8" | 1.47 |
G175 | 175:1 | 1400 | 3/8" | 3/8" | 1.08 |
G255 | 255:1 | 2040 | 3/8" | 3/8" | 0.75 |
G400 | 400:1 | 3200 | 3/8" | 3/8" | 0.48 |
