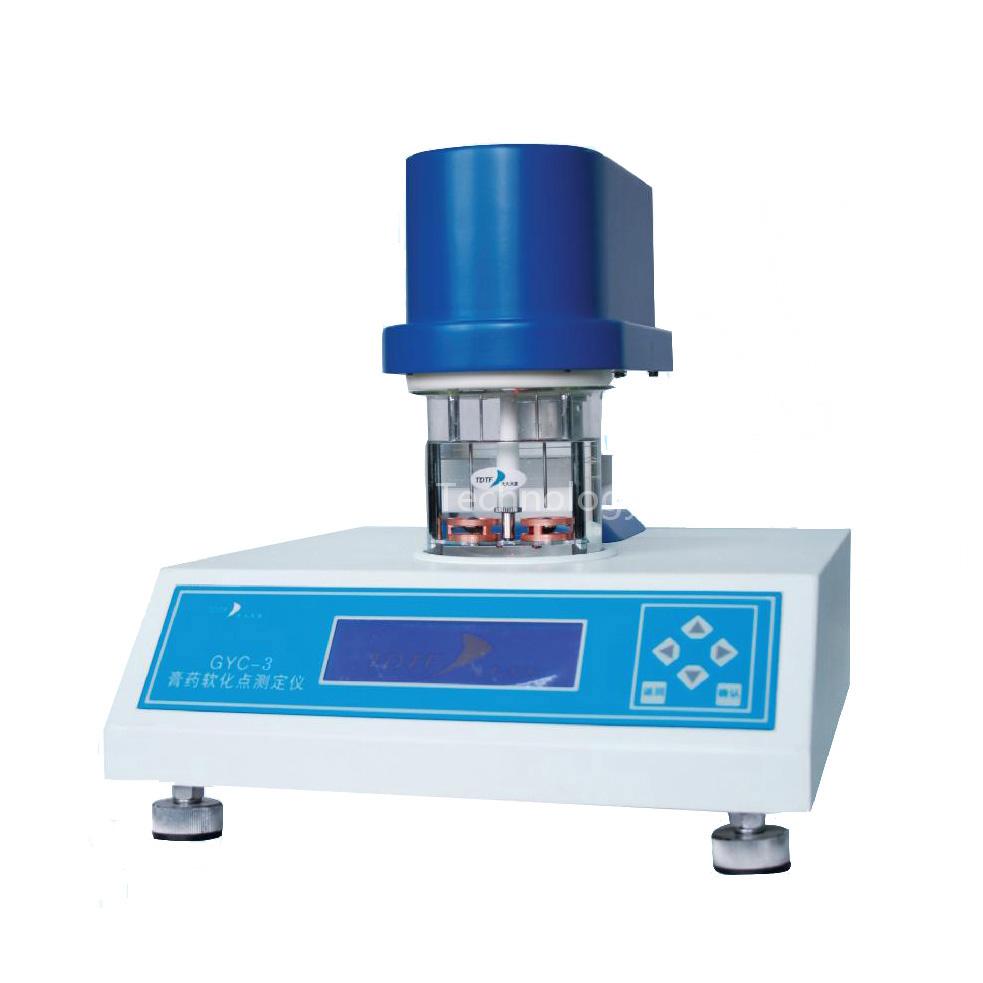

GYC 3 Plaster Softening Point Tester

GYC 3 Plaster Softening Point Tester is the only apparatus that comply with the 2010 edition of Chinese Pharmacopoeia for the determination of plaster softening point. It apply for the determination of the plaster softening point between 40°C ~ 80 °C. Meet the use requirement of various manufacturers, Institute for Drug Control and the relevant units.

The temperature measurement of instrument is high accuracy, temperature stability, good temperature curve, full automatic temperature control, automatic ball placement, automatic fiber inspection and so on.

GYC 3 type Plaster Softening Point Tester is equipped with computers, it can provide experimental results and the temperature curve, these related information can be storaged, managed and printed and so on.

Features

1. High-precision temperature sensor, high accuracy of temperature measurement
2. With built-in heating coil for heating, it’s safe and reliable
3. SMD devices used to substantially increase the stability
4. Smart heating mechanism without stirring in order to ensure undisturbed samples
5. The structure of quick dismissing heat ensure that the equipment is normal operation and not affected by high temperature.
6. Full status indication on the experimental process at a glance
7. Simple operation, automatically detect accuracy for operation
8. Automatically placed on a balance ball after balance
9. The optical fiber sensors automatically detect the results

Specification

1. Display Resolution: 0.1°C
2. Temperature Measurement Accuracy: 30°C~50°C,±0.2°C,50°C~80°C,±0.3°C
3. Constant Temperature of Water Bath: 37±1°C
4. Heating Rate of Water Bath: 1.0~1.5°C/MIN
5. Heating Range of Water Bath: 37±1°C~80±2°C
6. Timing Accuracy: ±1S/MIN
7. Dimensions: 360×365×520 mm
