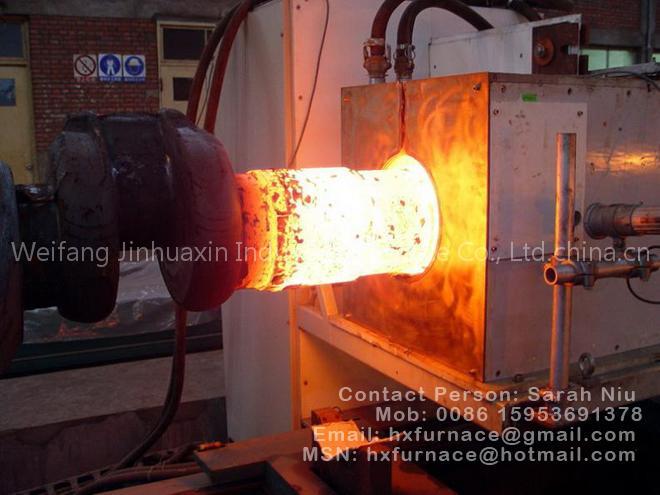

GTR Intermediate Frequency Heating Furnace

1.Production Name: GTR Intermediate Frequency Heating Furnace2.Production Description:1) Intermediate Frequency Heating Furnace2) Easy Operation and maintenance3) Good heat uniformity, small temperature difference on core surface, high control accuracy4) Energy saving, lower cost than coal furnace3.Usage: Heating before forging: used in gear, gear ring, axle shaft connecting rod, bearing, shackle, rigging heating before forging.Heating online: corrosion prevention spraying of pipes, bar blue brittleness blanking, and steel wire/tubes tempering online.Local heating: u-shape bolts bending, roller thermal assembling, steel tube bending heating process.4.Characters and Advantages:1) Produce process is easy to operate, charge in and discharge flexibly, high degree of automation, realize produce on line.2)Fast speed of workpiece heating, less oxidization or decarburization, high efficiency, and quality forging piece.3)High control accuracy of workpiece length, speed, and temperature.4)Good heat uniformity of workpiece, small temperature difference on core surface, high control accuracy.5)Integration design of inductor and furnace body, quick-change connector for different inductors, easy to change and replace.6)Omni energy conservation optimal design, low energy consumption, high efficiency, lower cost than coal furnace.7)Fit environmental protection requirement standard, little pollution, and reduce labour intensity of workers.5.

Package: Plywood cases and nude6.

GTR Intermediate Frequency Heating Furnace Technology Specifications:Model Power Input Power Output Inlet Wire Voltage(V)3 phases or 6 phases50HZ Inlet Wire Currency (A) DC Voltage(V) DC Currency (A) Frequency (KHZ) Voltage ±10%(V) Power (KW)GTR-60 380 100 500 120 1-8 750 60GTR-100 380 160 500 200 1-8 750 100GTR-120 380 200 500 240 1-8 750 120GTR-160 380 260 500 320 1-8 750 160GTR-200 380 330 500 400 1-8 750 200GTR-250 380 410 500 500 1-8 750 250GTR-300 380 490 500 600 1-8 750 300GTR-400 380 650 500 800 1-8 750 400GTR-500 380 820 500 1000 0.4-8 750 500GTR-750 380 1200 500 1500 0.2-6 750 750GTR-750 660 680 890 850 0.2-6 1300 750GTR-1000 380 1650 500 2000 0.2-6 750 1000GTR-1000 660 920 890 1150 0.2-6 1300 1000GTR-1500 380 2500 500 3000 0.2-1 750 1500GTR-1500 660 1400 890 1700 0.2-1 1300 1500GTR-2000 580 2100 780 2600 0.2-1 1170 2000GTR-2000 660 1850 880 2300 0.2-1 1300 2000GTR-2000 1250 1000 1650 1200 0.2-1 1300 2000GTR-2500 580 2600 780 3200 0.2-0.5 1170 2500GTR-2500 660 2300 880 2850 0.2-0.5 1300 2500GTR-2500 1250 1300 1650 1500 0.2-0.5 1300 2500GTR-3000 580 3100 780 3850 0.2-0.5 1170 3000GTR-3000 1250 2800 1650 240 0.2-0.5 2400 3000Contact: SarahMob:0086 15953691378Skype: sarahniu2006
