GT1 +INPA D-CAN

D-CAN interface is used to work with software for GT1 and INPA. It has the full functions as GT1 and INPA. The INPA and GT1 software is included. Software is dis52 base+dis55+tis2007.12+dis44(coding+progman). TIS and coding/programm functions all activated now! Supported Protocols

1. High-speed D-CAN and PT-CAN (500 kbit/s)
2. Low-speed K-CAN (100 kbit/s)
3. Standard BMW ports (BMW-OBD-interface)

Functions

1. Reading and erasing codes.
2. Live data
3. Component testing
4. Computer programming
5. Adaptation and diagnosing
6. Maintenance procedure explaining
7. Integration of maintenance information
8. Auto-coding and programming of engine, gearbox, airbag, light control computer, engine anti-theft computer etc.
9. Testing some data (i.e. pressure, resistance and current) through the connection with cars. (Optional accessories is needed)

Supported Models

• 1 Series: E81/E82/E87/E88
• 3 Series: E30/E36/E46/E90/E91/E92/E93
• 5 Series: E28/E34/E39/E60/E61
• 6 Series: E24/E63/E64
• 7 Series: E23/E32/E38/E65
• 8 Series: E31
• X Series: X3-E83, X5-E53, X5-E70, X5-E71
• Z Series: Z1-E30, Z3-E36, Z4-E85/E86, Z5-E52
• MINI Series: MINI-R50/R52/R53/R55/R56/R57

Supported Systems All systems of BMW series and OBD-II diagnostic system, including:

• Engine system
• Auto Transmission
• SRS
• ABS
• Cruise system
• Air-condition system
• EWS
• LKE
• BUS etc.

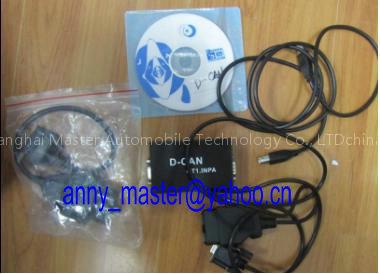

Package Included:

1. D-CAN interface box
2. BMW OBD16 cable
3. BMW 20PIN to OBD16PIN adapter cable
4. Net cable head
5. USB cable
6. Software DVD
