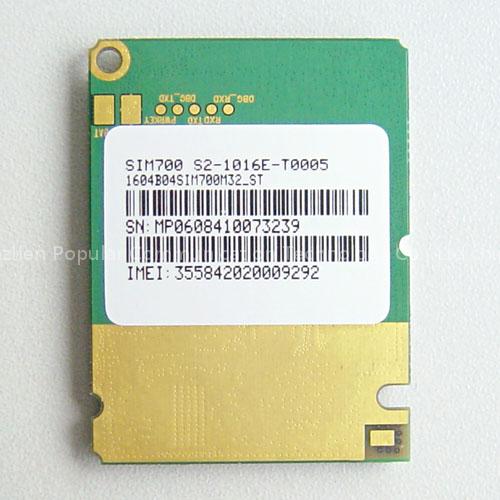

SIM700

The new EDGE module SIM700 is a complete Quad-Band GSM/GPRS/EDGE solution in a compact plug-in module. Featuring an industry-standard interface, it delivers GSM/GPRS/EDGE 850/900/1800/1900MHz performance for Data, Voice, SMS, and Fax in a small form factor and with low power consumption. The leading features of the module make it ideal for M2M applications like AMR, POS, Security, AVL etc.

General features
nbsp; Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
nbsp; Output power
nbsp; GMSK
nbsp; Class 4 (2 W 850/900MHz)
nbsp; Class 1 (1 W 1800/1900MHz)
nbsp; 8PSK
nbsp; Class E2 (0.5W GSM850/EGSM900)
nbsp; Class E2 (0.4W DCS1800/PCS1900)
nbsp; GPRS /EDGE multi-slot class 12
nbsp; Coding scheme: CS1~4, MS1~9
nbsp; Mobile station class B
nbsp; Control via AT commands
nbsp; (GSM 07.07, 07.05 and SIMCOM enhanced AT Commands)
nbsp; SIM application toolkit
nbsp; Supply voltage range 3.4 ... 4.5 V
nbsp; Low power consumption
nbsp; Normal operation temperature: -30C to +80C
nbsp; Restricted operation temperature: -30C to -40C and +80C to +85C
nbsp; Storage temperature: -45C to +90C
nbsp; Dimension: 45mm x 34mm x 3mm

Specifications for fax
nbsp; Group 3, class 1

Specifications for data
nbsp; CSD: up to 14.4Kbps, non-transparent
nbsp; GPRS: max: 85.6Kbps
nbsp; EDGE: DL&UL max: 236.8Kbps
nbsp; Coding scheme: CS1~4, MCS1~9
nbsp; Support PBCCH
nbsp; Support USSD

Drivers
nbsp; Multiplexer driver for Microsoft Windows

Specifications for voice
nbsp; Half Rate (ETS 06.20)
nbsp; Full Rate (ETS 06.10)
nbsp; Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80)
nbsp; Echo cancellation
nbsp; Noise reduction
nbsp; AMR

Compatibility
nbsp; AT cellular command interface

Interfaces
nbsp; 80-pins BTB connector
nbsp; Power supply
nbsp; Two analog audio channels
nbsp; RTC backup
nbsp; Dual - serial ports
nbsp; USB slave
nbsp; Antenna pad and antenna connector
nbsp; Charge interface
nbsp; SIM Card
nbsp; I2 C BUS
