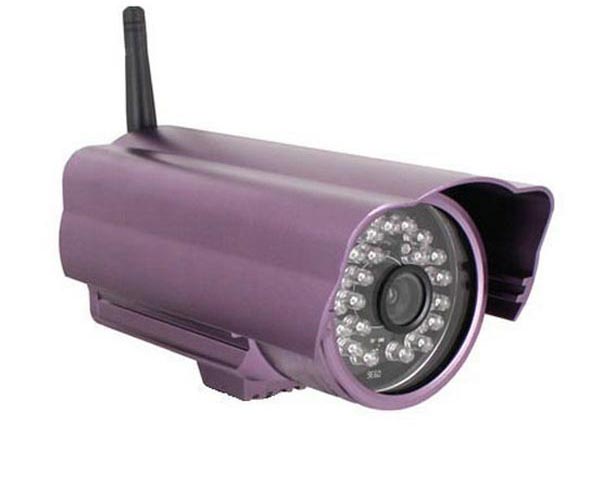

GSM Camera with CMS(WH_0M3GGS)

WH_0M3GGS is a GSM/GPRS enabled IR camera that can be located anywhere in the world with GSM coverage to deliver full colour JPEG images from remote locations by FTP, email post to your own custom server. There exists a Central Management System to manage up to three thousand front GSM IP cameras and ten customer consoles to access on line the same time. There are three ways to trigger the camera to take picture: On demand, motion detection and schedule. It has higher stability and scalable architecture as it adopts the double-CPU system: One for Image process as well as system controlling and the other for GSM/GPRS .

Main Features

1. There exists a Central Management System to manage up to three thousand front IP cameras and ten customer consoles to access on line the

Same time.

2. Up to 640 x 480 pixels Image resolution.

3. Store and forward function. When the GSM/GPRS network temporary is not available, the pictures will be stored in the camera and then be forwarded to the center server when the GSM network is available.

4. GSM/GPRS Mobile Network, build in GSM/GPRS modem (SIM slot) with external antenna

5. Two-way speaking. The center server can initialize the voice speaking.

6. Several modes power supplier: Main power supply and backup battery supply. Once the failure of the main power, the backup battery will act on. Solar panel is optional

7. Multi communction ways(SMS, push Email, FTP, smart and scalable integrated PC software)

8. Various image formats (640x480, 320x240 is optional)

9. Picture trigged by several ways

A. On schedule time

B. On demand from user

C. Signal from one of the sensors and etc.

10. Up to 32 GB SD/SDHC card local storage

11. Night vision: Infrared LEDs, effective range up to 20Meters, enables the camera to capture images in dark environment.

12. Watchdog built-in assure its stability

Specification

Camera Image Sensor 1/4" Progressive CMOS

Min. Illumination Color: 0.2Lux F1.2 B W: 0.02Lux F1.2

Electronic Shutter 1/25s~1/100,000s

Lens Mount CS

Compression Standard Picture Compression JPEG

Video Compression H.264/ MPEG-4

Audio Compression OggVorbis

Bit rate 32 Kbps~16Mbps

Image Max. Image Resolution 640x480

Frame Rate 50HZ: 25fps (640x480)

60HZ: 30fps (640x480)

Video Parameter Saturation, Brightness, Contrast adjustable through client software or web browser

Network Protocol Protocols TCP/IP, , FTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP

GSM/GPRS/3G Network Frequency bands HSUPA /HSDPA: 2100M/1900/900/850Hz

GSM/GPRS/EDGE: 1900/1800/900/850MHz

Data rate GPRS---UL: 53.6 kbps/DL: 53.6 kbps

3G---7.2 Mbps DL 2 Mbps UL

Interface Ethernet Interface 1 RJ45 10M 100M self-adaptive

Intelligent Alarm Motion Detection, Network Disconnect, Storage exception

Alarm Input 1 channel

Alarm Output 1 channel

Video Output 1Vp-p Composite Output (75Ω/RCA)

Local Storage Support SD/SDHC

Basics Reset button, Anti-flicker, Heartbeat, Password Protection

General Operating Condition -10°~60° Humidity 90% or less

Power Supply DC12V±10%

Power Consumption 4W MAX

Optional PoE (Power over Ethernet)

Other powering Solar and Battery powering is optional

GPS GPS is optional
