Listing ID#10013541
ModelARY-1800-5/7/8/10/12/15
CategoryTelecommunications

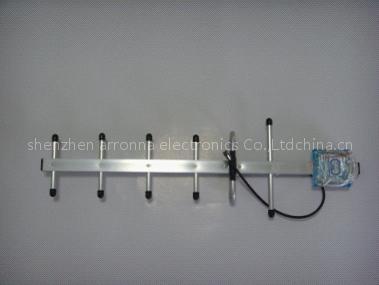

GSM 1800MHz Directional Yagi Antennas
Specifications
- Brand
- Arronna
- Origin
- guangdong china
- Price Term
- FOB
Quick answer
GSM 1800MHz Directional Yagi Antennas is a Telecommunications product. Key specs — Brand: Arronna; Origin: guangdong china; Price Term: FOB.
Product Description
Model ARY-1800-5/7/8/10/12/15Frequency Range–MHz 1710-1880/1710-1880/1710-1990/1710-1880/1710-1990/1710-1880Bandwidth-MHz 170Gain-dBi 9/10/11.2/11.6/12/13Horizontal Beamwidth -° 54/54/48/40/36/30Vertical Beamwidth -° 48/48/40/36/32/30F/B ratio-dB ≥14/≥14/≥16/≥18/≥18/≥18VSWR ≤1.5Input Impedance -Ω 50Polarization Vertical or HorizontalMaximum Power -W 100Connector N Female or CustomizedMechanical SpecificationsLength-cm 42/43/55/60/70/82Weight-kg 0.53/0.55/0.68/1/1.1/1.25Mounting Mast Diameter-mm Ф40 to 50
