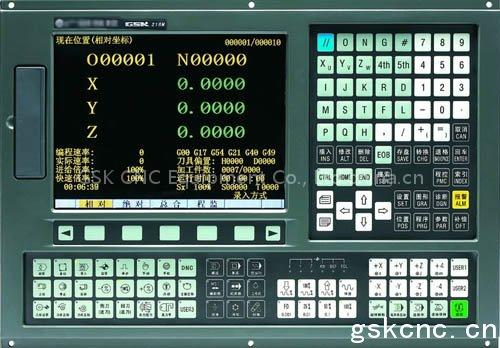

GSK218M Milling CNC System

GSK218M CNC milling/machining center controller is widespread CNC system (matched with machining center and general milling machine),employed with 32-bit high performance CPU and super-large-scale programmable device FPGA, real-time control and hardware interpolation technology to ensure the system gets the high efficiency with the μm-level precision, and its PLC can be edit on-line, which makes the logic control function become more flexible and strong.

1.The standard configuration is 4 axes and three links, and the rotary axis is determined by the parameter, and can be adapted with 4 axes link;

2.Max. traverse speed reaches 30m/min, max. feedrate reaches 15m/min;

3. Linear, exponential and S acceleration/deceleration is optional;

4.Pitch error compensation, backlash compensation, tool length compensation, tool wear compensation and tool nose radius compensation;

5. Convenient management with multilevel operation password;

6. Chinese and English display window selected by the parameter

7. 56M program memory capacity to store 400 programs and back stage edit function;

8. standard RS232 and USB interface to realize the bidirectional transmission of programs, parameters and PLC programs between CNC and PC;

9. DNC control and its baud rate can be set, up to 115200;

10. Embedded PLC can realize the various of logic control functions; its ladder can be edit , uploaded and downloaded on-line;

11. standard 48 input/48 output interfaces, I/O can be extended(optional function);

12. Auto/Manual switch by manual interference function;

13. MPG interrupt and Step interrupt function can execute the translation of coordinate system in the course of automatically running;

14. Edit programs can be executed in automatically running;

15. Rigid tapping and soft tapping are set by the parameter;

16. Three-gear shifting function, switch frequency conversion output voltage in max. spindle speed according to the corresponding gear;

17. Rotary, scale, polar coordinates and many kinds of fixed cycle function;

18. Index information function to be convenient to operation and maintenance;

19. History alarm and operation log to be convenient to maintenance.
