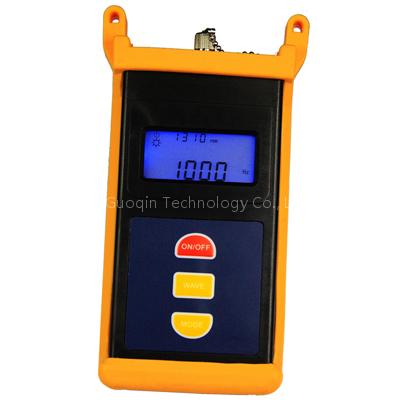

GQ-JW3109 Optical Light Source

Maintenance Telecom,Maintenance CATV,Test Lab of Fiber Opic
GQ-JW3109 Optical Light Source optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the JW3208 optical power meter, it is a perfect solution for the fiber optic network characterization.

GQ-JW3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the GQ-JW3208 optical power meter, it is a perfect solution for the fiber optic network characterization.
Features
Provides 1~4 output wavelengths which can be optional according to customers needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz
modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Compact size and decent appearance
Large LCD, easy operation
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements

Specifications

Type	GQ-JW3109
Wavelengths(nm)	650	1310/1550	850/1300	more wavelengths can be optional the maximum can be four wav
Emitter Type	FP-LD		LED
Output Power(dBm)	0	-7	-20
Spectral Width(nm)	≤10
Output Stability	+0.05dB/15mins; +0.1dB/ 8hours
Modulation Frequencies	CW,2Hz	CW,2Hz,270Hz,1KHz,2KHz
Optical Connector	FC universal adaptor	FC/PC ( Interchangeable FC/SC/ST connectors can be optional)
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Operating Temperature(oC)	_ 10 ~ +60
Storage Temperature(oC)	_ 25 ~ +70
Dimension(mm)	152X74X26
Weight	180g
