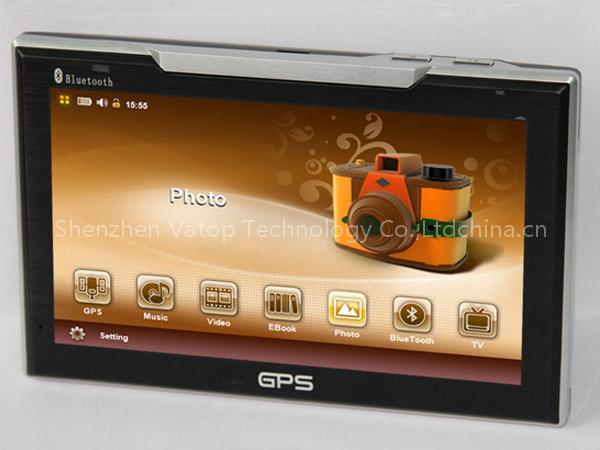

GPS Navigation
Listing ID#10009461
ModelVT-GPS7096
CategoryTelecommunications
Telecommunications

GPS Navigation

Specifications

Brand
VATOP | 华翼
Origin
China
Request Quote
Quick answer

GPS Navigation is a Telecommunications product. Key specs — Brand: VATOP | 华翼; Origin: China.

Product Description

SYSTEM PARAMETER
CPU533MHZ
CPU NO.:SiRF Atlas-IV, dual-core, ARM11 CPU,
MEMORY64MB or 128M
STORAGE:64MB(SLCNANDFLASH) + 2GB MLC NAND
GPS MAPSD CARD / NANDFLASH
O/SWINCE 6.0
SOTTWARE EDITARMV4

MULTI-MEDIA
MUSICMP3/WMA/PCM
MOVIEMP4/ASF/WMV/AVI/DIVX
DECODE ABILITYQVGA 25PAGES/SECOND

PHOTO + EBOOK
PHOTOBMP/JPG/GIF/PNG
E-BOOKTXT
GPS HARDWARE
CHIP SETSIRF IV
FREQUENCY1.575GHZ
C/A CODE1.023 MHZ chip rate
NO. OF CHANNELS42
TRACKING SENSITIVITY-158dBm
GPS PRECISION<5 m -135 dBm (outdoor)<20 m -148 dBm (indoor)<50 m -152 dBm (indoor)
GPS RATE0.1m/s
DATE REFRESH RATE1HZ
GPS RESET TIMEAVERAGE: 0.1s(OPEN SKY)
HOT RESETAVERAGE: 6s (Open Sky, -130dB)
WARM RESETAVERAGE: 38s (Open Sky
COLD RESETAVERAGE: 38s (Open Sky, -130dB)
MAX GPS ALTITUDE18,000m
MAX SPEED RATE515m/s
ACCELERATION < 4g
BUILT IN ANTENNAPASSIVE CERAMICS ANTENNA
BUILT IN ANTENNA GAIN27dB
ANTENNA VOLTAGE2.8V±5%
ANTENNA CURRENT
ANTENNA SWR<=2
EXTERNAL ANTENNA PORTWITHOUT
EXTERNAL ANTENNA VOLTAGEWITHOUT
EXTERNAL ANTENNA GAINWITHOUT
EXTERNAL ANTENNA CURRENTWITHOUT
FM TRANSMITTER
CHIP SETTHG4649/BH1418
FREQUENCY RANGE88MHZ-92MHZ
　
BLUETOOTH
PROTOCOLv1.2
FREQUENCY RANGECLASS 2
CHIPSETGSR BLUECORE3
WORK METHODDUPLEX MODE
DISTANCE3M
