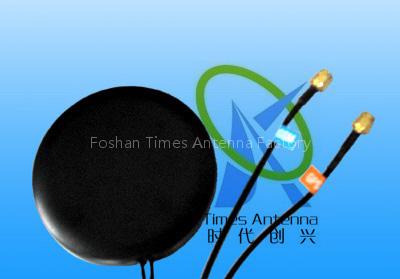

GPS/GSM Combiner Antenna
Listing ID#10009476
ModelTA-GPS/GSM
CategoryTelecommunications
Telecommunications

GPS/GSM Combiner Antenna

Specifications

Brand
Times
Origin
China
Request Quote
Quick answer

GPS/GSM Combiner Antenna is a Telecommunications product. Key specs — Brand: Times; Origin: China.

Product Description

Model TA- GPS/GSM Center Frequency-MHz 1575.42MHz±3Bandwidth -MHz ±5Peak Gain 3dBic Based on 7×7cm ground planeGain Coverage -4dBic at 90°0+90°(over75%Volue)Polarization RHCPLNA Gain 28dB TypicalNoise Figure 1.5dB Filter Out Band Attenuation(f0=1575.42 MHZ) 7dB in f020MHZ ;

20dB in f050MHZ;

30dB in f0100MHZ

DC Voltage 3V , 5V, 3V to 5V and so on

DC current 5mA /10mA Max

VSWR ≤2.0

GSM Antenna :

Center Frequency Range : 824-960MHz

1710-1990MHz

VSWR : 2:0:1

Polarization Vertical or Horizontal

Max power 100-W

Nominal Impedance 50-Ω

Connector SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX

Dimension 45*33*13mm

Weight 105g

Mounting sticking/magnetic
