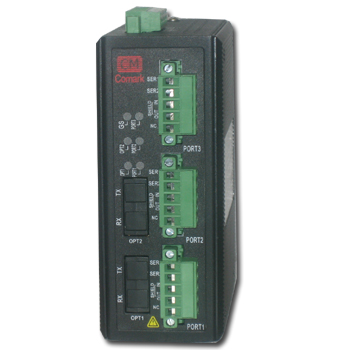

GE Genius HUB Repeater

Genius fieldbus data fiber optic repeater achieves the transformation between fiber optic signal and Genius bus electrical signal, which opposites with GE PLC. Fiber optic repeater, Fiber optic modem, Fiber modem, Fiber optical multiplexer, Fiber optic converter, Fiber Optic interface, Fiber multiplexer, Fiber networks, Fiber media converters,Fiber Repeater Module, Fiber Optic Communication Modules,Fiber Optic Communication, Fiber Optic transceiver, Fiber optic interface for ring structures, Fieldbus network repeater, Fieldbus transceiver,Optical multiplexer, Optical Fiber Modem/Redundant/Self-Healing, Optical Communication Modules, Optic fiber devices,Multidrop Fiber Optic, Multidrop Fiber Optic Connectivity for Modbus,Configure new network with line or redundant ring structure, Interface protocol converters, Network communication, Protocol converter, 2 Channel Fiber Optic modules for bus star and hub topologies,Existing network topologies, including radial (star), bus, and fault tolerant ring network configurations, Self-Healing, Multidrop Fiber Optic.

Specifications

Electrical Interface

#61656; GE Genius fieldbus SER1、SER2 industrial terminal connection

#61656; Support GE Genius bus Standard.

#61656; Communication Rates: 38.4K,76.8K,153.6K

#61656; Signal Delay (electrical interface): ≤6Bit.

#61656; Have the protection function of 4000V anti-lightning,1.5A over-current and 600W surge-proof

#61656; Terminal Resistance: the equipment without terminal resistance, please use the external one when necessary.

Power and Protection #61656; Power: dual power redundancy input, DC (12-36) V, typical DC24V, power consumption less than 4W, has DC1500V voltage isolation and reverse protection, industrial terminal interface.

(Please use the industrial standard power supply, or will cause the communication failure or equipment damage)

#61656; Relay alarm output: optical fiber link failure and power error alarm output, maximum capacity of contacts: DC48V/1A, industrial terminal interface.

Mechanical Properties #61656; Dimensions: 147mm×118mm×54mm.

#61656; Casing: IP30 protection grade, wave pattern aluminum enhanced casing.

#61656; Installation: 35mmDIN rail installation.

#61656; Net weight: 800g.

Environmental #61656; Operating Temperature: (-10~+70) ℃ (-40~+85)℃ optional

#61656; Ambient Relative Humidity: ≤90% (non-condensing)

#61656; Storage Temperature: (-40~+85)&#8451

Testing and Certification

CE Certification #61656; EN55022：2010(RE) Band Width:120KHz Frequency Range:30MHz to 1000MHz

#61656; IEC61000-4-2:2001(ESD) Air discharge voltage: ±8KV contact discharge voltage: ±4KV

Criterion: B Level 2

#61656; IEC61000-4-3:2006(RS) 3V/m (80-1000MHz) Criterion:A Level 2

RoHS Certification #61656; Test Standards:EN1122:2001 EPA3050B,EPA3052 EPA3540C,EPA3060A

#61656; Testing item: Pb Cd Hg Cr6+ PBBs

#61656; Test Results: N.D.

Applications

Electric power system, transportation, energy monitor, industrial control and other fields.

Order Information

P/N Series Description Unit

Ci-gg30 3 electrical ports GE Genius HUB Repeater, 3 channels independent GE Genius interface, 3 different Configurable rates between 38.4k,76.8k and 153.6k. pcs

Genius, Genius Serial Bus of GE Fanuc,OZD Genius G12, OZD Genius G12 Fiber Interface/Converter,Genius-Bus fieldbus networks, Genius transceiver

Fiber to Ge-genius, Ge-genius, Fiber modem Genius Bus
