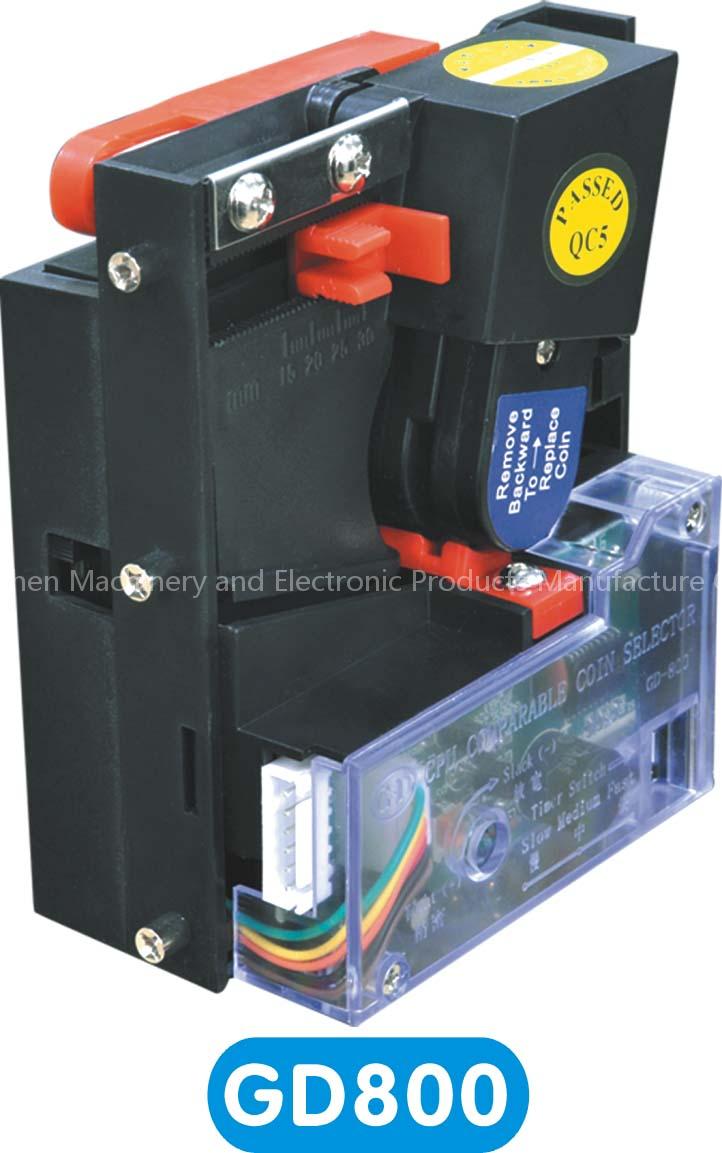

GD800 comparable coin mechansim(top insert)

TOP ENTRY CPU EQUALIZER WITH COIN REJECT LEVER.

Drop Inserting Type.

6. VR tunning for sensitivity of coin acceptance.
Turn clockwiste (+) for slackacceptance.
Turn anti-clockwise(-) for tightacceptance.

Coin drop speed timing preset in Sshape sliding passage CPU lock againstunusual moveabnormal stay reverse draw 500ms ~ 5 seconds lock outalong with operation auto-recovery.

Compatible with wide variety of Cabinet, Door Frame.

Coin diameter double check in slot opening lid entrance by diameter-rail sampling clamp for preventing bigger invalidcoin from inserting .

Spring lid-wiring fully sweep sluggish coins off passage byreject lever for free from coin jam.

More than millions times strong stroke durability of solenoidfor the best performance of coin selecting .

1. Remove yellow plastic token & replace your coin to sampling clamp;

2. Adjust diameter-rail of lid for preventing bigger invalid coins from insering:

3. Drive screw off lid-wing if coin thickness more than 2.5mm:

4. Connect loom to host machine as following lines guide : White line(N.C. signal)
Green line(N.O. signal)
Gray lineCounter (Meter)
Yellow lineinhibit/low(<+1V)
Red linePower DC +12V
Black LineGround (GND)

5. Switch Time Duration for correct triggering of coinacceptance if necessary .
Long duration of Pulse :. 100ms
Common duration of Pulse :50ms
Short duration of Pulse :20ms

6. VR tunning for sensitivity of coin acceptance.
Turn clockwiste (+) for slackacceptance.
Turn anti-clockwise(-) for tightacceptance.
