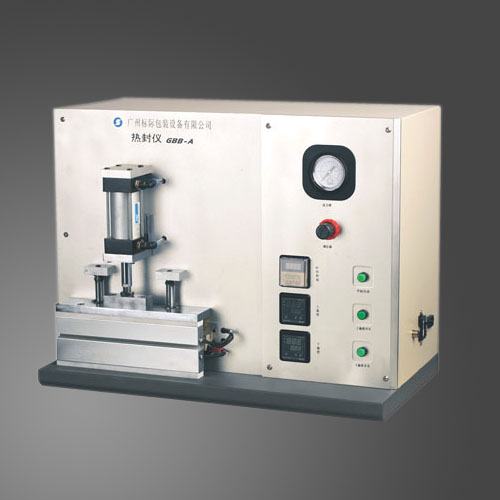

GBB-A Heating-seal Tester

Function and usage Heat-sealing property is the most important property of the plastic packaging film. GBB-A Heating-seal tester can measure the temperature range, intensity, suitable speed, pressure and so on of the heat sealing of plastic film based material, flexible packaging composite membrane, coating paper, aluminum foil and other kinds of heat-sealing compound precisely.

Specifications Power : AC220V  50HZ  ; Compressed air: 8kg/cm2; Heat sealing plane: 300mm×10mm slick (With silicon pad in lower seal stick); Heat sealing temperature: room temperature 20~300°C (Precision 1°C); Heat sealing time: 0.01s~99.99h; Heat-sealing pressure: 0~0.8Mp. Dimension: 700(L)mm×400(W)mm×540(H)mm Weight: Desktop 30Kg;
