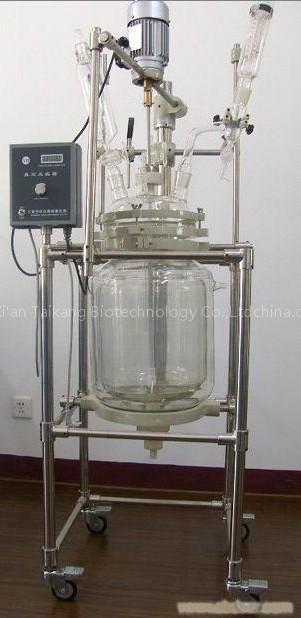

G3.3 Double Layer Glass Reactor

1.Vacuum stirring reaction

2. High-temperature and low-temperature reaction

3. Constant speed running mixing reaction
4. Distillation , refluence and condensation reaction.
5. To do the rectify through assembling the rectifying pillar.Realize Reflow and the same time.

Characters:

adopts AC frequency control of motor speed So the rev is steady , no spark appear, wide moment, safe, and can be used for constant working.

2. All sets of glass apparatus are made up of GG17 or G3.3 with the double-layer jacketed structure. 5-7 mm glass thickness,owns good chemical and physical properties.

3. The teflon sealing makes it in a state of high vacuum ,anti-acid and anti-alkali.

4. It can work under the ordinary pressure and negtive pressure and can reach the -0.098Mpa negtive pressure.

5. Constant temperature and micro-computer controllled oil bath, with beautiful and anti-corruption stainless steel inner tube ,works with low fluctuation and conveniently.
Five-mouth plane flange reactor cap is connected by the PTFE and is demounted easily with the characteristics of good sealing ,anti-acid and anti-alkali.

6. The reactor stirring bar’s inner bellycore is made from the 316 stainless steel specially ,covered by the PTFE tube,which is resistance to various organic solvents.

7. The drain hole contains the flange mouth and the PTFE drain valve which leave no dead angle and rudimental material. The whole set of drain valve can be easily demounted and the inside reactor can be cleared conveniently.

8. The real time temperaturanzeige

Basic Configuration:
