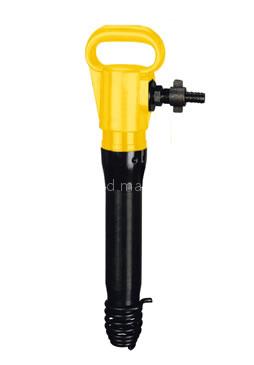

G10 Pneumatic pick
Specifications
- Origin
- Northeast Of Wu Li Ting Crossroads,Fu Ma Road,Fuzh
Quick answer
G10 Pneumatic pick is a Air Conditioning Systems product. Key specs — Origin: Northeast Of Wu Li Ting Crossroads,Fu Ma Road,Fuzh.
Product Description
The pneumatic pick is suitable for drilling in mine, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other athletics occasion which need impact.
| Total Length | 575mm |
|---|---|
| Weight | 10.9kg |
| Rammerweight | 0.9kg |
| Rammer dia | 38mm |
| Rammer stroke | 155mm |
| Air pressure | 0.63Mpa |
| Impact energy | 43J |
| Impact frequency | 16Hz |
| Air consumption | 26L/s |
| Air pipe inner dia | 16mm |
| Drill | 500mm |
