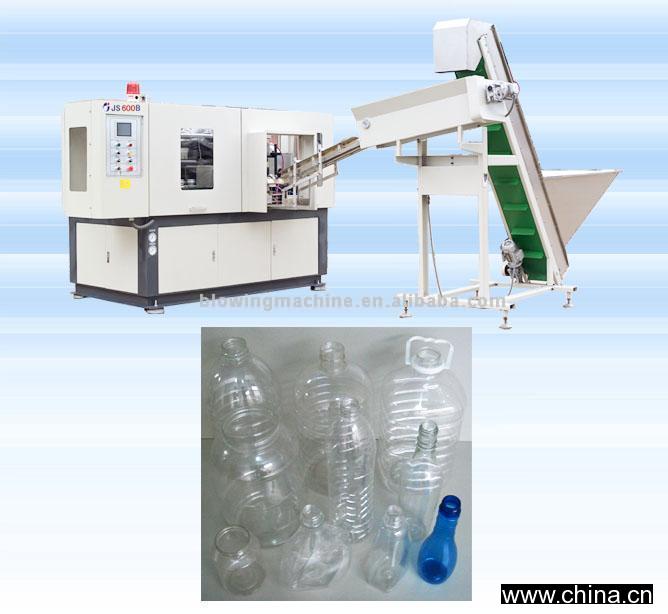

Fully Automatic PET Bottle Blow Moulding Machine (JS600B)

Model No.:JS-600B Product Origin:China Brand Name: Price Terms:FOB Ningbo / Shanghai Payment Terms:T/T or L/C Certification:CE Description:JS600B full automatic blow molding machine is suitable for producing PET/PE and PPplastic containers and bottles in all shapes.

It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouthbottle and hot fill bottle. (1) Reasonable design, full automatic control, save power and labor.

Adopt high qualitycomponents.(2) Feeding system carries the performs by robot automatically.(3) Infrared oven heater adopts the quartz lamp to heat the PET tube. (4) Fully automatic process with low investment, high efficiency, quick and safeoperation, easy for trouble -shooting, maintenance and other benefits. (5) We have perfect service after sales.

Main parameters: A: Specifications: 1. Mold gathering strength (kN): 1502. Mold traveling distance (mm): 2303. Pulling rising traveling distance (mm): 3504. Mold hole number (cavity): 1B: Bottle specifications: 1. Max. Bottle capacity (L): 52. Max. Tooth part size (mm): 633. Max. Bottle diameter (mm): 1804. Max.

Bottle body height (mm): 350C: Theoretic production capacity (bph): 600-900D: Electric power specifications: 1. Total power consumption (kW): 332. Thermal rating (kW): 30E: Air pressure specifications: 1. Operating pressure (kg/cm2): 82. Low pressure gas consumption (L/min): 8003. Bottle blowing pressure (kg/cm2): 304.

High-pressured gas consumption (L/min): 900F: Machine weight: 1. Machine size (m): 2.5 x 1.5 x 22.

Machine weight (MT): 2JS-600B is one specialty blows makes PET to model the bottle two step completelyautomatic to blow the bottle equipment, may blow system 5L most greatly, is suitablein blows the system carbonic acid beverage bottle, the mineral spring thermos, the agricultural medicine bottle, the cosmetics bottle, the small wide mouth bottle and so on, this machine serviceability is broad, the price can be reliable, the stability is good, the security is good.

Mechanical characteristic: A, Uses Mitsubishi (Japan) the computer control system, the performance is stable;B, The conveyer automatically deliver the semifinished product; C, Uses the infrared lamp tube to heat up, penetrating power strong, bottle semifinished product rotation being heated, being heated even, the lamp tube, the baffle plate highly may adjust, suits the different bottle semifinished product, and has the automatic platoon warm installment, guaranteed dries a constant temperature, is stable is touching the screen adjustment, controls warm fine, holds controls the simple convenience;D, Each machinery treat as all has the foolproof device, when some working procedureappears the breakdown, touches the screen auto-alarm demonstration, putting in order machine cut to secure state; E, Various movements actuate by the import name brand air cylinder, stable reliable,the service life grows, does not have the pollution, the noise is low and soon the merit; F, Uses the double crank connecting rod to lock the mold, locks the mold strengthto be strong; G, The air course design act and the air flush divides into two parts, will blow the bottle, treats as the different barometric pressure; H, The operating procedure manually has, the entire automatic two ways; simple, convenient, is easy to understand; I, The safe reliable unique valve position design, is lets the air course change clear;J, The production technical process completely automation completes, has the investment province, the efficiency high, the ease of operation, the service is simpleand so on the merit; K, The bottle body exempts is polluted;L, The cooling system achieves centrifugal the cooling effect.Packing:Wooden case
