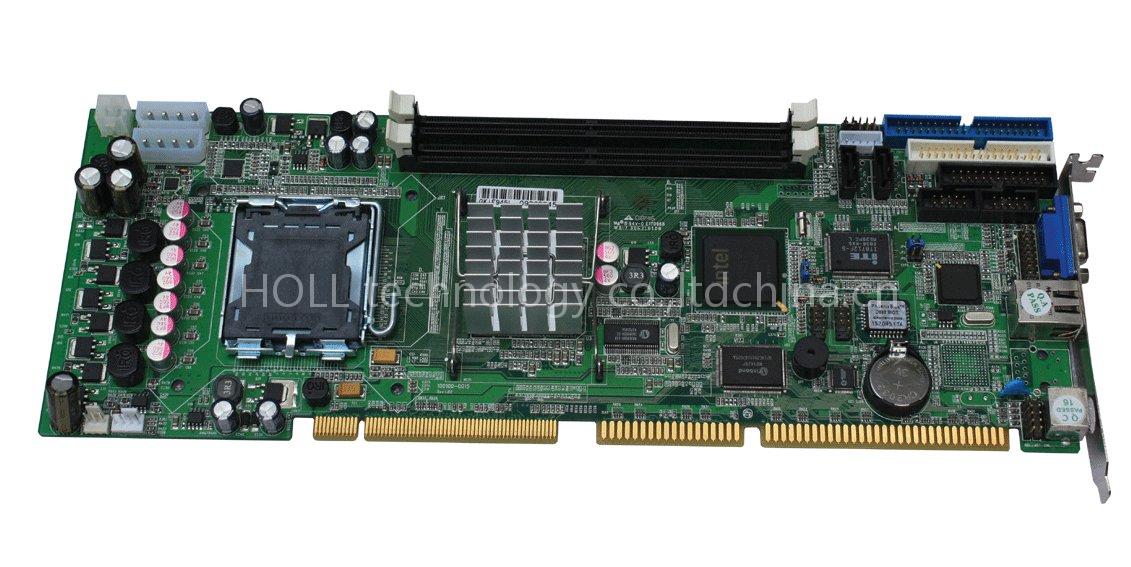

Full-size CPU Card IEC-945GV

PICMG 1.0 Core 2 duo LGA 775 Full-size CPU Card, Onboard VGA, 1x Gigabit lan Port, 2x COM, 6x USB, 1x IDE, 4x SATA. Full-size PICMG 1.0 CPU card IEC-945GV supports
Intel Core 2 Duo /Pentium Dual-Core/Pentium EE Pentium D /Pentium 4/Celeron D with 65nm

Features

CPU: LGA 775 Intel Core 2 Duo /Pentium Dual-Core/Pentium EE Pentium D /Pentium 4/Celeron D with 65nm, support 533/800MHz FSB
Chipset: Intel 945GC+ICH7
System Memory: 2x 240-Pin DDR2 DIMM, up to 4GB
Display: Intel GMA950 chipset, up to 244M system memory, up to resolutions
Ethernet: Integrated RT8111C Gigabit network controller
System storage: 1x40Pin IDE,4xSATA
Expansion: PCI/ISA
Dimensions: 338x122mm

Specifications

Form Factor PICMG 1.0 Full-size CPU card
CPU Socket LGA 775
CPU Intel Core 2 Duo /Pentium Dual-Core/Pentium EE Pentium D /Pentium 4/Celeron D with 65nm
FSB 533/800
Chipset Intel 945GC+ICH7
System Memory 2x 240-Pin DDR2 DIMM, up to 4GB
BIOS Award Flash BIOS
Display Intel GMA950 chipset, up to 244M system memory, up to resolutions
Display Interface VGA
Ethernet Integrated RT8111C Gigabit network controller
System storage 1x40Pin IDE,4xSATA
Floppy Interface NO
Serial port 2xCOM
Parallel port 1xLPT
USB port 8xUSB2.0
GPIO 4IN/4OUT
Audio Reserve AC97 Interface
PS2 KB/MS 1x PS/2
Expansion Interface PCI/ISA
Power Requirement AT/ATX
Watchdog Timer 255 Generates a time-out system reset
Other No
Environment Operating Temperature 0℃-60℃, Operating Humidity: 5%~95% relative humidity, non-condensing
Dimension 338x122mm

Packing List
80-Pin HDD Cable x1,Y-type PS/2 Keyboard & Mouse cable x1, 4Pin-4Pin ATX Cable x1, Serial port Cable x1, Serial port&Parallel port Cable x1, SATA Cable x2, Dual-USB Cable x1, Installation manual x1, Driver CD x1

Ordering informations
IEC-945GV PICMG 1.0 Core 2 duo LGA 775 Full-size CPU Card, Onboard VGA, 1x Gigabit lan Port, 2x COM, 6x USB, 1x IDE, 4x SATA
