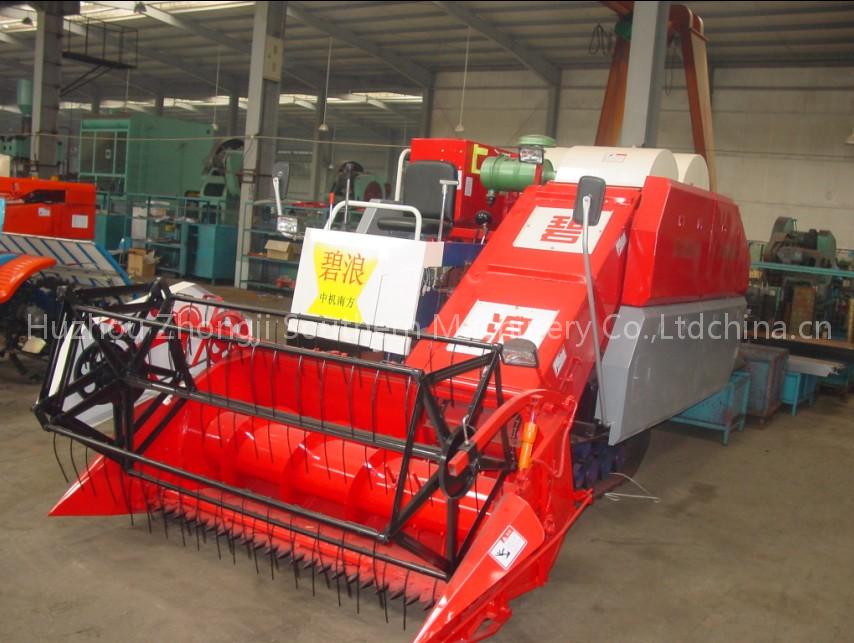

Full feeding Rice & wheat Combine Harvester
Specifications
- Origin
- China
- Price Term
- FOB
Full feeding Rice & wheat Combine Harvester is a Other Farm Machines product. Key specs — Origin: China; Price Term: FOB.
Product Description
Model | 4LZ-2.3 | ||
Dimension (Length*Width*Height) mm | 5200*2300*2300 (3sets/40’HQ in Nude) | ||
Feeding capacity(kg/s) | 2.3 | ||
Weight (kg) | 2750 | ||
Working efficiency (ha./h) | 0.26~0.54 | ||
Cutting width (mm) | 2000 OR 2200 | ||
Feeding(t/h) | 7.2 | ||
Engine | Type | Water cool, four stroke, diesel engine | |
Model | 4102 OR 4105 | ||
Displacement (L) | 2.98/3.16 | ||
Output/rpm (kw/rpm) | 45 OR 52 | ||
Fuel tank capacity (L) | 40 | ||
Traveling system | Crawler specification (width*pitch*tooth) | 400mm*90mm*48 | |
Ground pressure (kpa) | 21 | ||
Ground clearance | 260mm | ||
Transmission | HST | ||
Working parts | Threshing cylinder | Type | Axial flow, spike tooth, Double drums |
Diameter& length | 550mm*1285mm (Double) | ||
Cleaning | Chaffer sieve + fan( front blowing and rear suction) + two times vibrate | ||
Fuel consumption (kg/ha.) | 22~42 | ||
Working speed (m/s) | 0.5~1.2 | ||
Blade cutting space(mm) | 76.2 | ||
Screw conveyer type | Extendible transverse conveyer | ||
Screw conveyer outside diameter(mm) | Ā490 | ||
Grain tank capacity (cubic meter) | 0.85 | ||
Wet field passing | 15cm | ||
Grain unloading method | Sacks OR auto unloading auger | ||
Total loss (%) | Rice≤2, Wheat≤1 | ||
Breakage rate (%) | ≤1 | ||
Impurity rate (%) | Rice≤1, Wheat≤1 | ||
Use reliability(%) | ≥93 | ||
Optional device | rape harvesting assembly, One-lever entire operation system,external discharge screw conveyer,lengthened #03 thresher assembly,Double blades. | ||
