Listing ID#10096958
ModelHL-1100Zb
CategoryOther Plastic & Rubber Machinery
Full-automatic Intermittent Pre-foaming Machine
Specifications
- Brand
- Huilai
- Origin
- China (Mainland)
Quick answer
Full-automatic Intermittent Pre-foaming Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Huilai; Origin: China (Mainland).
Product Description

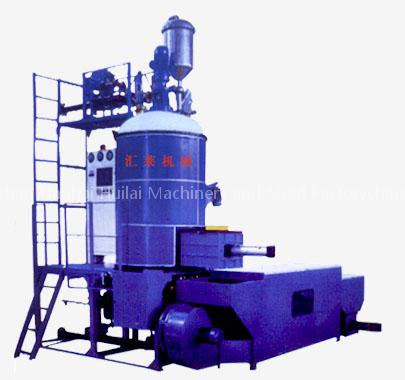

HL-1100Zb Full-automatic intermittent pre-foaming machine
We are specialized in manufacturing Full-automatic intermittent pre-foaming machine.
Parameter Table of Full-automatic intermittent pre-foaming machine:
| Name | Unit | Parameters | |
| Main barrel body | specification | mm | 1100*1700 |
| volume | m³ | 1.5 | |
| effective volume | m³ | 0.95 | |
| Steam | inlet | mm | 4 |
| supply pressure | mpa | 0.6-0.8 | |
| Compressed air | inlet | mm | 0.6-0.8 |
| supply pressure | mpa | 25 | |
| Discharging outlet | Discharg outlet | mm | 80 |
| blower outlet | mm | 100 | |
| Negative feeding electric machine | kw | 4 | |
| 　 | Electric machine | kw | 4 |
| Power | Discharging blower | kw | 1.5 |
| Drying blower | kw | 1.5 | |
| 　 | Feeding blower | kw | 3 |
| Vibration elecyric machine | kw | 0.37 | |
| 　 | Ratio of foaming | 13-30 | |
| Capacity | 10kg/m³ | kg/h | 180 |
| 20kg/m³ | kg/h | 450 | |
| 25kg/m³ | kg/h | 550 | |
| Consumption of steam | 　 | 6-9KG per period | |
| Consumption of power | Air consumption | 　 | 1.5-2m³ per period |
| Consumption of electricity | 　 | 0.3/per period | |
| The error of weight per unit is lower than | % | 3 | |
| 　 | Weight | kg | 2500 |
We are specialized in manufacturing Full-automatic intermittent pre-foaming machine.
