Listing ID#10096964
ModelEPS-1100Type
CategoryOther Plastic & Rubber Machinery

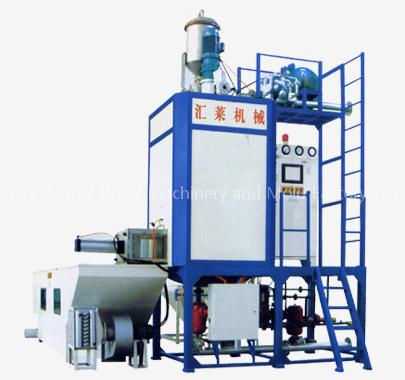

Full-automatic Intermittemt Pre-foaming Machine
Specifications
- Brand
- Huilai
- Origin
- China (Mainland)
Quick answer
Full-automatic Intermittemt Pre-foaming Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Huilai; Origin: China (Mainland).
Product Description
Product Name:Full-automatic Intermittemt Pre-foaming Machine
The Specifications of Full-automatic Intermittemt Pre-foaming Machine
| Item | Unit | TDJ-1100 | |
| Chamber inner size | mm | 1100 | |
| Chamber shell heigh | mm | 1740 | |
| Chamber Vol. | m³ | 1 | |
| Steam inlet DN | mm | 40 | |
| Compressed air inlet DN | mm | 25 | |
| Electronic weight | kg | 1-50 | |
| Diameter of pollute drain outlet | mm | 80 | |
| Motor total power | kw | 15.35 | |
| Control Mode | 　 | Electronic computation | |
| Drying way | 　 | vulcanize bed | |
| Foaming desity | kg/m³ | 12--30 | |
| Volume of production | kg/h | Desity kg/m³ | output kg/h |
| 10.8 | 240 | ||
| 15 | 400 | ||
| 20 | 500 | ||
| 25 | 600 | ||
| Max. contour size | mm | 5000*3500*3800 | |
| Machine weight | kg | 2500 | |
We are specialized in manufacturing Full-automatic Intermittemt Pre-foaming Machine
Welcome all kinds of cooperation!
