Listing ID#10096961
Model38 type series
CategoryOther Plastic & Rubber Machinery

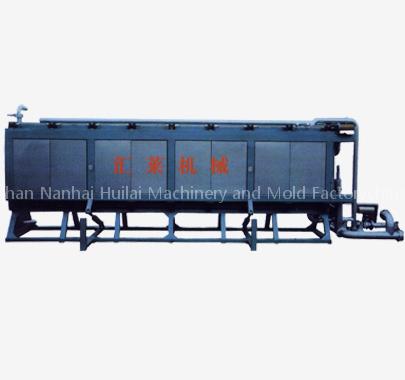

Full-automatic Hydraulic Foam Plastic Panel Machine
Specifications
- Brand
- Huilai
- Origin
- China (Mainland)
Quick answer
Full-automatic Hydraulic Foam Plastic Panel Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Huilai; Origin: China (Mainland).
Product Description
Product Name:Full-automatic hydraulic single open-door 38 type series foam plastic panel machine
We are specialized in manufacturing Full-automatic hydraulic single open-door 38 type series foam plastic panel machine.
Parameter Table of Full-automatic hydraulic single open-door 38 type series foam plastic panel machine:
| Items | Size mm | Vapor pressure Mpa | Compressed air pressure Mpa | Hydraumatic power kw | cooling power kw | Production rate piece/min |
| SOB40125Y | 4000*1200*500 | 0.6-0.8 | 0.5-0.7 | 4 | 7 | 1/6 |
| SOB40126Y | 4000*1200*600 | 0.6-0.8 | 0.5-0.7 | 4 | 7 | 1/6 |
| SOB60105Y | 6000*1200*500 | 0.6-0.8 | 0.5-0.7 | 4 | 7 | 1/10 |
| SOB60126Y | 6000*1200*600 | 0.6-0.8 | 0.5-0.7 | 4 | 7 | 1/10 |
| SOB80127Y | 8000*1270*700 | 0.6-0.8 | 0.5-0.7 | 4 | 7 | 1/15 |
We are specialized in manufacturing Full-automatic hydraulic single open-door 38 type series foam plastic panel machine.
