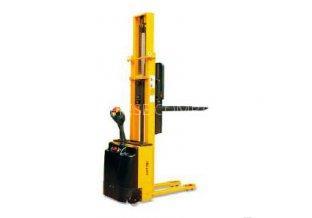

Full-Electric Stacker FK series
Specifications
- Origin
- China (Mainland)
- Price Term
- FOB
Full-Electric Stacker FK series is a Other Farm Machines product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description
Drive unit with electromagnetic brake.
C space.
The chasis width is only 800mm with steering 205degree, providing excellent manoeuvrability.
Traction battery and Starting battery available.
Conforms to EN1757-1:2001, EN1726.
Model | FK1016 | FK1025 | FK1029 | |
Rated Capacity | (kg) | 1000 | ||
Load Center | c(mm) | 600 | ||
Height | h3(mm) | 1600 | 2500 | 2900 |
Height | (mm) | 90 | ||
Fork Length | l(mm) | 1150 | ||
Overall Length | L(mm) | 1850 | ||
Truck Length incl. Fork face | L2(mm) | 700 | ||
Over Width | B(mm) | 800 | ||
Closed Mast Height | h1(mm) | 2080 | 1890 | 2090 |
Free Lift | (mm) | — | 90 | 90 |
Extended Mast Height | h4(mm) | 2300 | 3200 | 3600 |
Fork Overall Width | M(mm) | 540 | ||
Load Distance | X(mm) | 365 | ||
Wheels Base | Y(mm) | 1260 | ||
Individual Fork Width | (mm) | 160 | ||
Ground Clearance | (mm) | 30 | ||
Front Load Wheel | (mm) | PU Ø80×60 | ||
Rear Steering Wheel | (mm) | PU Ø150×54 | ||
Turn Radius | Wa(mm) | 1500 | ||
Aisle Width for Pallets 1000x1200 Crossways | Ast(mm) | 2350 | ||
Aisle Width for Pallets 800x1200 lengthways | Ast(mm) | 2300 | ||
Lifting Speed(with/without load) | (Mm/s) | 140/100 | ||
Lowering Speed(with/without load) | (Mm/s) | 105/110 | ||
Travelling Speed(with/without load) | (Km/h) | 3.5/5.0 | ||
Motors lifting | ||||
