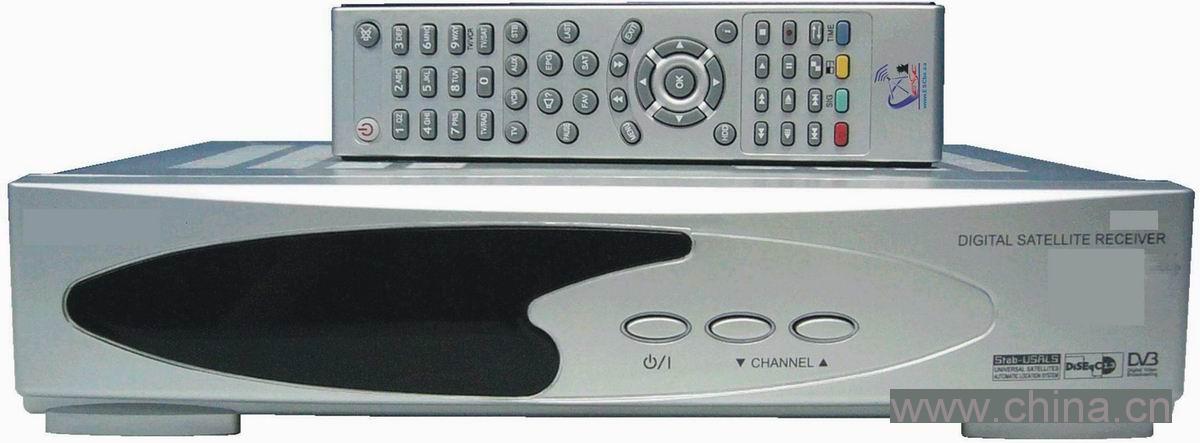

Fta satellite receiver pansat2700

LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection 22KHz Tone: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible Channel Selection: PLL Frequency Synthesizer Demodulator Type: QPSK Demodulation (DVB-S) Symbol Rate: 1 ~ 45 MS/s Inner FEC: Viterbi Convolutional Coding Rate 1/2, 2/3, 3/4, 5/6, 7/8 Outer FEC: Reed Solomon Coding(204,188) T=8 Video Decoder System Decoding: MPEG-2 ISO/IEC 13818-2 Profile and Level: MPEG-2 Data Rate: 1 ~15 MB/s Video Formats: 4:3(Normal) & 16:9(Widescreen) Audio Decoder System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II Audio Mode: Mono, Dual, Stereo, Joint Stereo Sampling Frequency: 32, 44.1, 48 KHz Audio/Video Output Audio Output: 2 RCA Cinch Video Output: 1 RCA Cinch Digital Audio: 1 S/PDIF (Optical) S-Video: 1 S-VIDEO
