Frequence Panty Liner Equipment is a Business Services product. Key specs — Origin: China.
Product Description

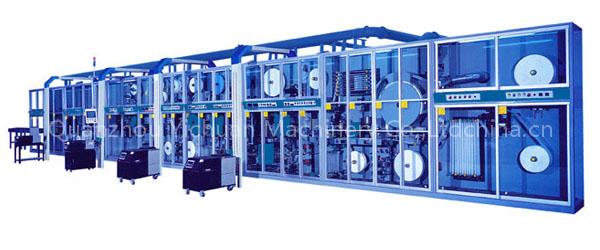

YC-HD1000-FC Frequence Panty Liner Equipment Main Technical Parameter: 1. Designed production speed: 1200 PCS/min; 2. Stable production speed: 1000 PCS/min; 3. Machine power: three-phase five-wire (380V, 50HZ); 4. Machine capacity: about 180KW (exclude hot melt applicators and air compressor); 5.
Machine size: 20.0m*6.0m*3.5m (L*W*H) (include hot melt applicators and air compressor); 6. Machine weight: about 18T (whole production line ); 7. Air pressure: 0.6-0.9Mpa; Main Function Features: 1. Frequence motor driving with PLC control and touch screen; 2. Frequence unwinding, auto-tension control and auto splicing for raw materials; 3.
Auto reject for wasted diaper, detect & alarm for material exhausted; 4. Phase adjusting during running without stop; 5. Products auto counting & output in line. 6.Panty liner machine
