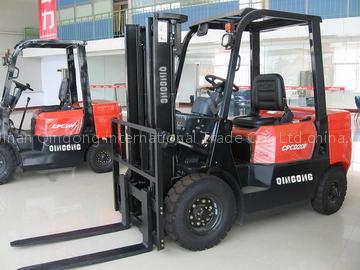

Forklift is a Other Farm Machines product. Key specs — Origin: Qingong,JINAN,CHINA; Price Term: FOB.
Product Description
MODEL | CPCD 20F | ||
Load capacity kg | 2000 | ||
Load center mm | 500 | ||
Power type | Diesel | ||
Max.lifting speeds(with load) mm/s | 400 | ||
Max.Driving speeds(with without load) km/h | 17/19 | ||
Max.Towing(with without load) kN | 12.7/8.3 | ||
Gradeability(with/without load) % | 15/20 | ||
Lifting height mm | 3000 | ||
Free lift mm | 60 | ||
Tilting angles(forward-backward) | 6/12 | ||
Min.turning radius mm | 2200 | ||
Min.right angle aisle width mm | 1950 | ||
Min.under-clearance mm | 110 | ||
Dimensions | Overall length mm | 3450 | |
Overall width mm | 1150 | ||
Overall height(mast lowered) mm | 2070 | ||
Overall height(mast extend) mm | 4060 | ||
Overall height to overhead guard mm | 2095 | ||
Fork overhang mm | 451 | ||
Wheel base mm | 1640 | ||
Tread Tyre | Front tread mm | 970 | |
Rear tread mm | 970 | ||
Front tyre | 7.00-12 | ||
Rear tyre | 6.00-9 | ||
Total weight kg | 3320 | ||
Fork width mm | 100 | ||
Fork thickness mm | 40 | ||
Backrest height mm | 1000 | ||
Fork length mm | 1070 | ||
Engine | Engine model | A490BPG (Made in Chin) | |
Rate power KW | 37 I(SUZU ENGINE OPTIONAL) | ||
Ratate Speed At Rate Power rpm | 2650 | ||
Max.torque Nm | 148 | ||
Rotate speed at max torque rpm | 1800-1900 | ||
Type of power shift | Clutch | Tor-con(Hydraulic) | |
