Forging Manipulator

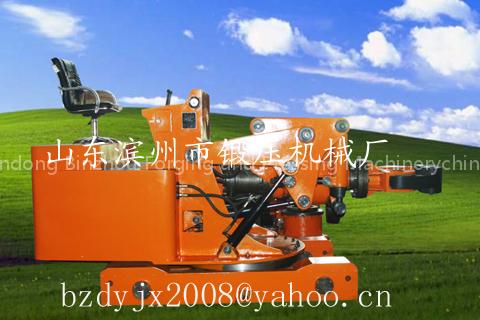

Description: DYH-0.6S forging manipulator has a good view, turning flexible and cohesive, and has a good performance, and it is one of the most advanced equipment in the forging industry. It can used together with 750kg pneumatic forging hammer, or 1000-2000kg steamed empty dual-use hammer or other corresponding tonnage of hammer, it is needed in the forging industry. DYH-0.6S is operated throughout hydraulic transmission, each Movement system is adjusted by every speed.

The major movements as follows:
1, the cart can go forward and back
2, the platform can turnaround in 360
3, tongs pole can turn
4, tongs pole can parallel movement (up and down)
5, tongs pole can incline
6, clamp

Main technical parameters
Nominal load weight 0.6t
Rescue moment 8820N. M
Holding round material diameter Φ90-380mm
Holding square material diameter 90-340mm
Clamp rod center height 775-1200mm
Clamp rod overhang 1200mm
Rail distance 1200mm
Cart radius of gyration 2100mm
Clamp radius of gyration 775mm
Manipulator run speed 0-45m/min
Clamp slew speed 0-30r/min
Clamp parallel lifting speed 0-6 m/min
Clamp incline speed 0-6 m/min
Platform slew speed 0-4r/min
Clamp up-incline angle 10
Clamp down-incline angle 22
