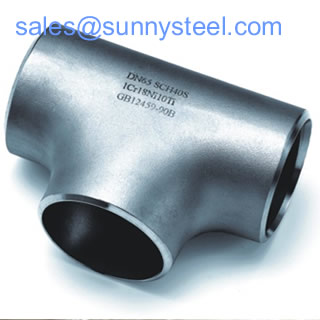

Forged Tee Fittings
Listing ID#139077
ModelForged Tee Fittings
CategoryCasting Services
Casting Services

Forged Tee Fittings

Specifications

Brand
Sunny Steel
Origin
China
Certifications
ISO, DIN, SGS
MOQ
10
Packaging
Packed in wooden crates, wrapped in plastic, and suitably protected for sea-worthly delivery or as r
Price Term
EXW/EX-Work,FOB
Payment Term
T/T,L/C,Western Union
Supply Ability
100000000 pcs
Delivery Time
Within 30 days
Loading Ports
Shanghai
Guarantee
We believe that you can rely on us as we provide you quite satisfactory service and products with be
Request Quote
Quick answer

Forged Tee Fittings is a Casting Services product. Key specs — Brand: Sunny Steel; Origin: China; Certifications: ISO, DIN, SGS; MOQ: 10.

Product Description

Socket Welding Tees, Forged High Pressure Pipe Fittings

Socket Welding Tees (Forged High Pressure Pipe Fittings)

Socket-weld or threaded (npt or pt type. ) Pressure: 2000LBS, 3000LBS, 6000LBS, 9000LBS Size: from 1/4 to 4inch (6mm-100mm) Material: ASTM A105, F304, F316, F304L, F316L, A182 F11/F22/F91 Connection ends: butt welded, threaded Rating: 1. Threaded wog: 2000, 3000 and 6000 lbs (140kgs/cm2-210kgs/cm2-410kgs/cm2)( sch 40 - sch 80 - sch 160 ). 2.

Socket-welding wog: 3000, 6000, 9000 lbs. ( sch 80 - sch 160 - xxs ). Specification: 1. Dim. Spec: Asme b 16.11-1996 (rivision of ansi b16.11-1991), mss-sp-79\ 83\ 95\97 and gb/t 7306, 12716, 14383, 14626, spec. 2. Material spec: Astm a105, astm a182(f304, f304l, f316, f316l, f304h, f316h, f317l, f321, f11, f22, f91), gb/t 699 20mn. 3.

Size of raw material: Dia. 19-85mm round bar. Finish: Galvanized or black. (carbon), pickled(stainless).

Applications: oils, chemical industries, water conservancy, electric powers, boilers, machinery, metallurgy, sanitary constructions and more

We have a team of experienced professionals with years of experience in manufacturing.
