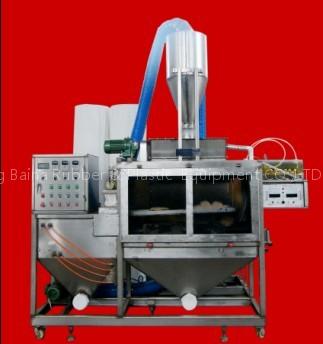

Flocking system,flocking machine

.Comprises high voltage electrostatic generator, flocking system, fiber-off dust control unit and pasting unit

.Power supply AC 380V

.Effective range of main engine flocking: the width of the products to be flocked≤100mm

.Working diameter of fiber-off roll: 160mm

.Working length of fiber-off roll: 1100mm

.Total power of main engine motor: 7KW

.Delivery speed: 0---15m/min, frequency control

.Outside measurements of the machine: 4760 (L)×2500 (W)×3500 (H) (mm)

.Weight of the machine: app. 3000kg

.Main power supply: 3 phase 5 line AC380±10 50HZ

Control circuit: AC220V, use neutral line

.
