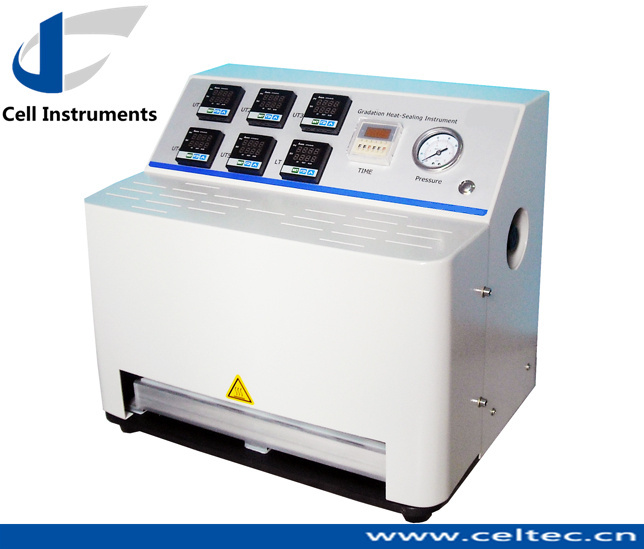

Flexible Packaging Film Hot Seal Tester
Specifications
- Brand
- Cell
- Origin
- China
- MOQ
- 1
- Packaging
- plywood
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C,Western Union
Flexible Packaging Film Hot Seal Tester is a Testing Instrument & Equipment product. Key specs — Brand: Cell; Origin: China; MOQ: 1; Packaging: plywood.
Product Description
Features 1. 7 inch TFT touching screen makes parameter setting and operation easy and convenient for Heat Seal Tester. 2. PLC for precise dwell time and sealing pressure control 3. P.I.D. for precise sealing temperature control 4. Uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating 5.
Multiple groups of test parameters can be saved to reduce setting time and eliminate human error 6. Independent heating of upper and lower sealing jaws on the model of Heat Seal Tester. 7. Sealing jaw customization available in term of dimension, shape and surface
Technical specifications Sealing temperature Room Temperature ~ 300℃ Deviation ±0.2℃ Dwell time 0.1 s~9999s Sealing pressure 0.15 MPa ~ 0.7 MPa Sealing Jaws 330mm×10mm(Sealing Surface)(Customization Available)
Standard ASTM F2029, QB/T 2358, YBB 00122003
