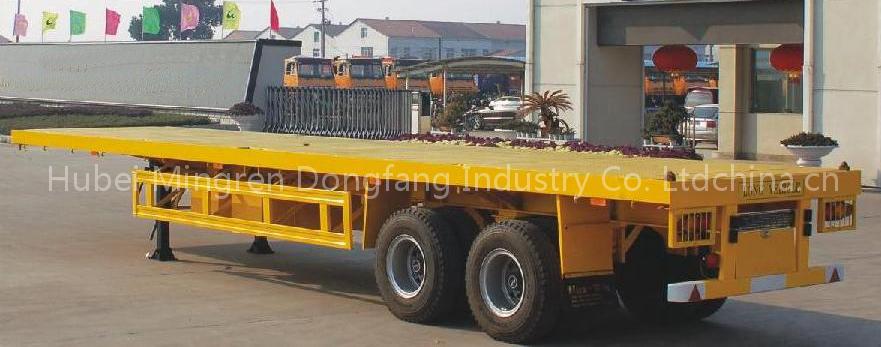

Flatbed Semi-trailer

DIMENSIONS

TareWeight

6000kg / 6800kg

Payload

30000kg / 45000kg

OverallLength

12500mm

OverallWidth

2500mm

SPECIFICATIONS

I Beam& Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm-16mm,width 140mm; Middle Flange 6mm-8mm,Height 500mm, Bottom Flange 16mm--20mm,width 140mm.

Deck Floor

3mm Checker Plate

Axle

FUWA ,BPW or other Chinese Brand 9 tons,10.5tons,11.5tons,12 ton,13tons

Suspension

Heavy duty mechanical suspension or air suspension

Leaf Spring

Leaf spring for heavy loading or air bag

King Pin

JOST or Chinese brand 2” Bolt-in King Pin or 3 1/2” Bolt-in King pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear.

Wheel Rim

8.25-22.5 / 8.0-20 / 8.5-22.5

Tire

11R22.5(Tubeless) / 12.00R20( Radial) /10.00-20( Nylon)

Twist Lock

ISO twist lock for container

Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks

Electric System

Gladhand, 24V-coupler, Rear lamp. Side lamp, 7-Pin coil wireless,Led light.

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.

Accessories

One standard tool box, One set of spare tire including a carrier.
