Listing ID#10210044
ModelSBHT-3100
CategoryBusiness Services

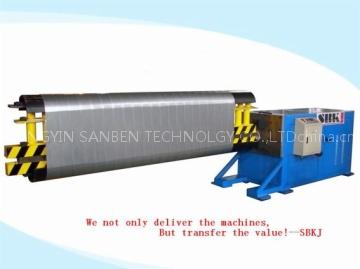

Flat-Oval Duct Machine
Specifications
- Origin
- jiangyin
- Price Term
- FOB
Quick answer
Flat-Oval Duct Machine is a Business Services product. Key specs — Origin: jiangyin; Price Term: FOB.
Product Description
flat-oval ducts. Machine control is by PLC, and the LCD unit on the operator‘s panel stores all set parameters for easy recall by the operator when required.Main Technical Date:Type SBHT-3100
Thickness 0.4-1.2mm
Tube Length 3100mm
Diameter 330-1600mm
Flat Oval sizes 150×468mm-900×2060mm
Power 18kw
Weight 3300kg(Without Mould)
Dimension 5600×1200×1300mm
Note:- All dimensions are nominal- The duct circumference is increased by approximately 0.7% in the stretching process
