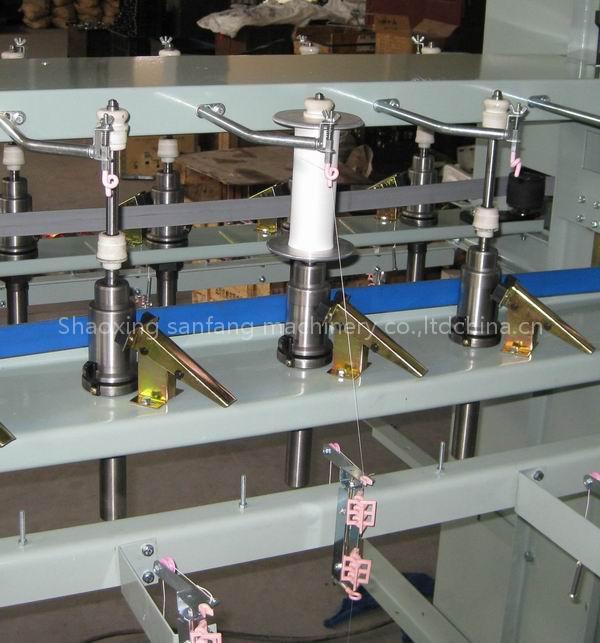

Flanged bobbin spooler machine

:: SGD168-A Flanged bobbin spooler machine, it is mainly for flanged bobbin winding, and it can be preparation using for covering machine.

:: SGD168-A type computerized flanged bobbin winding machine is used for rapid winding and non-twisting doubling of all kiinds of chemical fiber and staple has the structure of two sides and one layer. The whole machine is sprayed plastic. It is controlled by computer, regulated speed by frequency variation, and easy to operate. Its key parts are adopted overseas famous products. It is suitable for matching the equipment such as compound twisting machine and mechanical Covering yarn machine.

Main technology parameters：

::Number of spindles: 60-120(adjustable)
::Winding speed: max 700m/min
::Winding bobbin type: flanged bobbin
::System of motor: round chain
::System of come and back: rounding chart
::Main motor: y90s-6-0.75kw
::Drive motor: y100L2-4-(60spindle 3kw,120spindle 5.5kw)
::Products: polyester, filament yarn,cotton yarn
::winding type: A: warp wind, B: weft wind, C: compound type wind, D: built-up type wind
::Size: L14500 x W1400 x H1850 mm
::Weight: about 2000kg
