Flange bolts and Nuts
Listing ID#139075
ModelFlange bolts and Nuts
CategoryCasting Services
Casting Services

Flange bolts and Nuts

Specifications

Brand
Sunny Steel
Origin
China
Certifications
ISO, DIN, SGS
MOQ
10
Packaging
Packed in wooden crates, wrapped in plastic, and suitably protected for sea-worthly delivery or as r
Price Term
EXW/EX-Work,FOB
Payment Term
T/T,L/C,Western Union
Supply Ability
100000000 pcs
Delivery Time
Within 30 days
Loading Ports
Shanghai
Guarantee
We believe that you can rely on us as we provide you quite satisfactory service and products with be
Request Quote
Quick answer

Flange bolts and Nuts is a Casting Services product. Key specs — Brand: Sunny Steel; Origin: China; Certifications: ISO, DIN, SGS; MOQ: 10.

Product Description

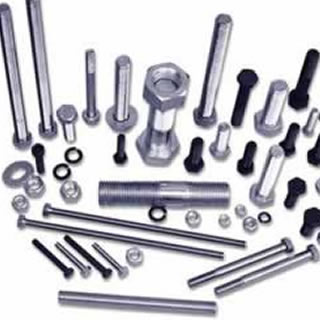

Flange bolts are those type of bolts having a ridge or skirt around the bolt head. They are also know as frame bolts and are designed to provide the holding power as if a washer was installed. Please check the types as below: Hex Bolts Hexagon Socket Bolts Eye Bolts Carriage Bolts Hammer / Channel Bolts T-Head Bolts Oval Neck Track Bolts OEM Special Bolts Standard:

DIN 931, DIN 933, DIN 558, DIN 601, DIN 960, DIN 961, ISO 4014, ISO 4017, JIS B 1180, ANSI B 18.2.1 Mechanical Properties:

Metric Grades : 4.6, 8.8, 10.9, 12.9 Inch Grades : 2, 5, 8 Mechanical Properties:

Material: A193 B7/A194 2H; A193 B7M/A194 2HM; A193 B8/A194 8; A193 B8M/A194 8M; A193 B16/A194 4/7; A320 L7/A194 4/7; A320 L7M/A194 7M Surface: black, galvanized, nickel plated, cadmium plated, Teflon plated Flange Nuts

A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer.Flange nuts Type:Welding Nuts, Wing Nuts, Nylon Self-locking Nut, Round Nuts, Acorn Nuts, Slotted Nuts, Square Nuts, Long Nuts, Hex Nuts, Flange Nuts, Eye Bolts, Tubing Nuts material: carbon steel stainless steel, alloy steel, SWRCH8A, SWRCH35K, Q195LY,35#, 45#, 40CrMo.....
