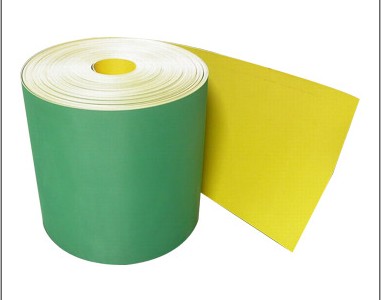

Flame Resistant Belt

The product is made of cotton canvas, nylon canvas or EP canvas and finished through the process of calendaring, assembling, vulcanizing etc, suitable for conveying materials that require a flame resistant and static conductive belts in power, chemical, light, metallurgical and grain processing industries, under the condition of flammable or explosive environment above coal mines.

Cover Type Standards Minimum Tensile Strength (MPA) Minimum Elongation (%) Abrasion Material Covered Fire Resistant SANS-F 17 350 180 Material with fire hazards, e.g. Coal IS-1891(FR Grade) 17 350 200 ISO-340(FR Grade) 17 350 180 AS-F(FR Grade) 14 300 200 AS-1332(FR Grade) 14 300 200 DIN S Grade 17 350 180 DIN K Grade 17 400 200 MSHA-FR 17 350 200 CAN/CSA (FR Grade) 17 350 200

Cover rubber property: Tensile Strength / MPA Elongation at break / % Abrasion / mm3 ≥18 ≥450 ≤200 ≥16 ≥400 ≤250
