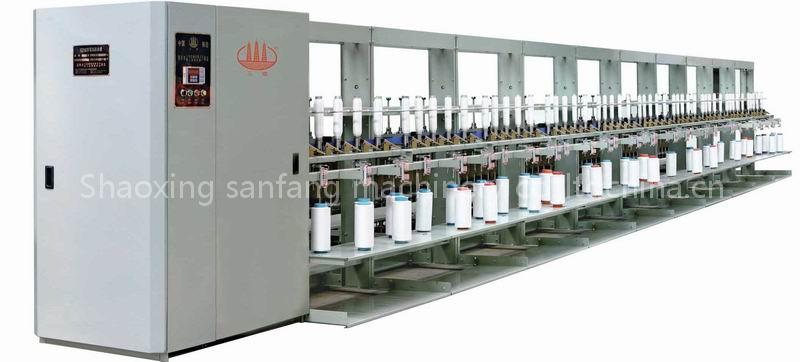

Fiber spooler machine

:: SGD168 computerized spooler machine, can be preparation use for twisting machine.
:: The fore equipment of two-for-one twister for filament, which can wind different forms Semifinished yarn into double-cone bobbin yarn.

Main technology parameters：

::Number of spindles: 50-100 adjustable
::Winding speed: max 700m/min
::Winding bobbin type: φ42 x 270mm
::Volume weight: 1kg
::System of motor: round chain
::System of come and back: rounding chart
::Main motor: y90s-6-0.75kw
::Traverse motor: y100L2-4-(60spindle 3kw,120spindle 7.5kw)
::Products: polyester, filament yarn,cotton yarn
::winding type: A: warp wind, B: weft wind, C: compound type wind, D: built-up type wind
::Size: L14500 x W1400 x H1850 mm
::Weight: about 2000kg
