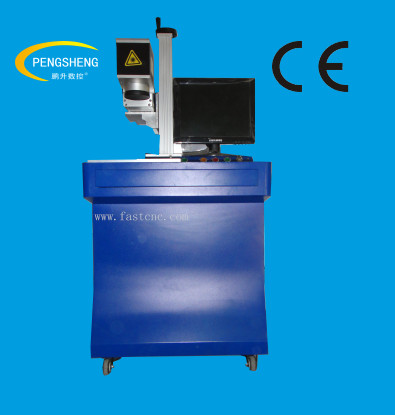

Fiber laser marking machine

Product's description：

1. fiber laser marking machine is the 3th-generation laser marking machine

which is manufactured by the most advanced laser technology in current of the world.

The quality of laser beam is very good(near to the limit of diffraction,exporting TEM00 fundamental transverse mode, M2 near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker),Therefore it is very suitable for delicate marking.

3.With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%,it can achieve high speed marking,and control

the depth and shape of the facula .

The processing speed is 2-3 times than the traditional marking machine.

Air cooling,the size of the machine is very small.

6.Long life,ultra-low power consumption,the conversion efficiency is more than

30%,the unit power of the machine is no more than 0.5kw

With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about manual positioning.

Technical Parameter

Model PC-F

Laser power 10W/20W/30W/50W

Laser Wavelength 1065±10nm

Q-frequency 20KHz~100KHz

Divergence 0.3mard

Marking range 180*180mm

Minimum line width 0.01mm

Minimum character 0.1mm

Marking speed 10mm/s

Marking depth 0 ~0.2mm

Engraving line speed ≤7000mm/s

Repeatability accuracy ±0.001mm

Beam quality M2:1.2~1.8

Marking Format Graphics, text, bar codes, two-dimensional code, automatically

marking the date, batch number, serial number, frequency,etc.

Graphic format supported bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

working voltage 220V±10%/50Hz/4A

Unit power ＜0.5kw

Use of the environment Clean and dust free or dust less

Working condition:Humidity 5%-75%，free of condensed water

Laser module life ＞100000 hours

Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC),electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials

Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
