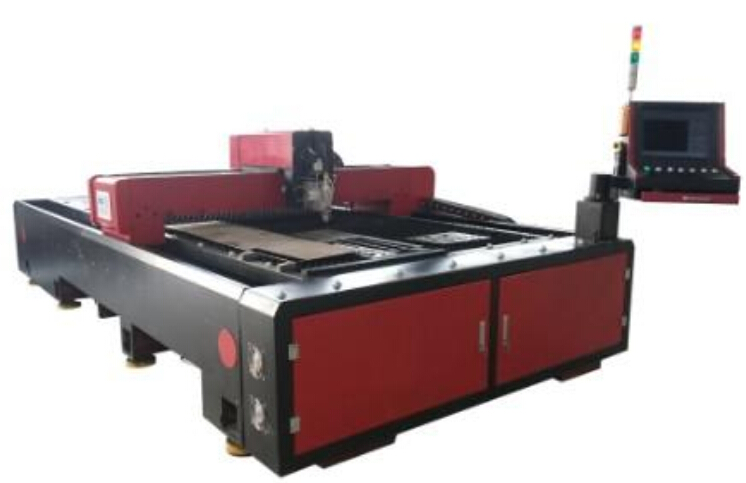

Fiber laser cutting machine

Features: 1. Compare with the plasma cutting, it has the high precision cutting for different kinds of metal materials, like cutting stainless steel, carbon steel, alloy steel, spring steel, aluminum, copper, silver, titanium and other metal materials below 6 mm. 2.

Compare with the NC, which can cut any complicated process and shape.No noise and no need to open any moulds at all. 3. Compare with linear cutting, which has much faster speed,100 times higher than it. 4. Double lead screw to drive, Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process 5.

High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch 6. Low use cost: only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour) 7.

Low follow-up maintenance cost: only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch 8. Steady performance: as a mature laser apparatus, the fiber laser cutting machine is suitable for most metal manufacturing and processing industry.

Technical parameters: Model: PC-1325F 　　　PC -1530F Working size: 1300*2500MM 1500mm×3000mm Cutting thickness: 0.1mm-8mm/ Max. output power: 500W/1000W Medium of Laser Fiber Laser wavelength: 1064nm Pulse frequency: 1--300HZ Min. linewidth: 0.12mm Electrical source: 380V/50HZ/100A Cutting precision ≤±0.04 Supported format Plt, Dxf, AI, Dst etc Continuous Working Time 24 hours Machinel weight: 3000kg Cooling way water-cooling Blowing way Oxygen, Compressed air or Nitrogen Max. cutting speed: 15m/min (According to material and thickenss) Applicable material: This machine can cut carbon steel, stainless steel, mild steel, alloy steel, spring steel, aluminum, copper, brass, titanium plate, galvanized sheet and so on.

According to different metal materials and thickness, we will adjust the pluse width, current, frequency, cutting speed.
