Fiber Polishing Machine

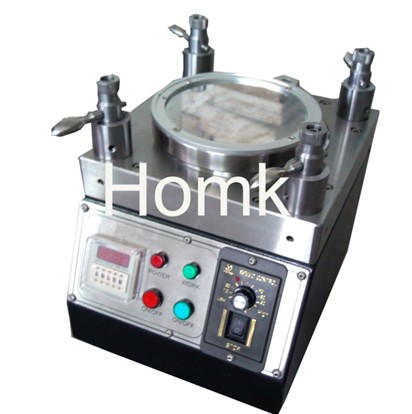

HK-20U fiber polishing machine speed can be adjust by freely rotate buttom from 0-120rpm.

1) HK-20U fiber polishing machine exceeds requirements for GR-326 End Face Geometry, Built high quality, heat-treated, stainless steel for amazing precision and durability. 2)The fiber polishing machine uses rotation & revolution method. Efficient and fast processes for all connector types: FC, SC, LC, ST, MTRJ, MPO, MTP, E2000 and so on.

Like plastic fiber, energy fiber, glass fiber all can use this machine. 3) New I. P. C. Holder technology yields the best results in the industry.

The fiber polishing machine is no variability in result when polishing 1 to 48 connectors one time, HK-20U fiber polishing machine is suitable extremely for the volume production, operation flexibility is high fast processes (just 30S)each kind of connectors with high effect, low insert loss and low return loss, low repair coefficient.

The good interchangeability and repeatability.

4)Optimized polishing path with improved film effective usage, Has a unique compensation of polishing film function, can control polishing film's cost strictly while keep highest consistency of quality. Save material and low cost for polishing.

HK-20U Fiber polishing machine Configuration:

The fiber polishing machine using Japan electrical machinery (ensuring the movement stable under ultra long time) and two Janpan motors, has great power.

This fiber polishing machine be used the Japanese NSK bearing ( ensuring the internal structure to be stable in the high-speed operation, extending the working life)

The electron primary device is imported from OMRON (ensuring the electrical specification stable)

Our this fiber polishing machine's main components are used the material imported from Germany (ensuring the processing precision and the durability)

Pressure way 4 coil spring Insert Loss 0.3 dB (SM) 0.2 dB (MM) polishing capacity(max) SC, FC, ST: 20, 48 units LC: 24, 48units Return Loss 50 dB (PC) 60 dB (APC) polishing connector type FC, SC, ST, LC, MU, MTP, MPO, MTRJ and so on Radius 10~25mm motor speeed 120rpm rotation, 2rpm revolution Offset 50 μ M dimension 230*230*255mm Under cut 50nm film size 5' ' Repeatability 0.1dB weight 24KG Interchangeability 0.2 dB Input voltage 100-120VAC, 50/60Hz or 220-240VAC, 50/60Hz Working Situation Temperature -10— +40º C polishing cycle 2.83mins Heavy punch 500g or 250g Polishing chassis diameter 130mm Polishing time setting 0-3min Counterweight pressure 2.1~3.6kgf/cm Time Range 0-300S Polishing Time 2 min.

(quick assembly type) 3-4 min. (standard connectors) Pressure Range 0~5kg Precession Speed 1.5rpm
