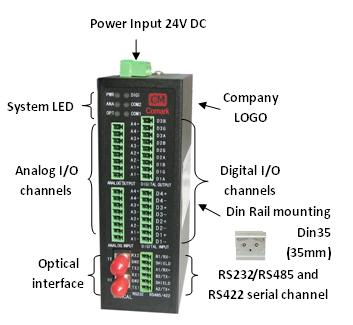

Fiber Optic Multiplexer
Specifications
- Brand
- Comark
- Origin
- China
- Certifications
- CE, FCC, TUV
- MOQ
- 1 pair
- Packaging
- Standard Carton
- Price Term
- EX-Work
- Payment Term
- T/T, Western Union
- Supply Ability
- 1,000 pcs per week
- Delivery Time
- 3 to 5 days
- Loading Ports
- Shenzhen
- Guarantee
- 3 years warranty
Fiber Optic Multiplexer is a Telecom Parts product. Key specs — Brand: Comark; Origin: China; Certifications: CE, FCC, TUV; MOQ: 1 pair.
Product Description
Performance index
Contact closure signal/TTL digital signal interface
Independent 1 ~ 4 channel input, 1~4 channel output
Input mode can be elected by TTL input or dry contacts input
TTL input level: input level + (0 ~ 1) V/logic "0", input level + (5 ~ 30) V/logic "1"
Dry contacts input: short circuit or open
Output modes: the optional for 5V TTL / 24V TTL output, or relay output
Relay output form: FORM C（SPDT）
Relay-operating time 6ms
Relay release time 3ms
Total switch time 10ms
Relay contacts capacity 1A/24VDC
Transmission delay time: 2 milliseconds
The maximum working switch frequency: 50Hz
Analog signal interface
Voltage/Current analog signal (0-5)V/(0-10)V/(0-20)mA optional
Support 1 ~ 4 channel voltage/current analog signal.
Voltage signal interface parameters
Accuracy 0.5% (atmospheric temperature)
Voltage transmission rang （0-5）VDC or （0-10）VDC
Input impendency 100KΩ
(4-20 ma electrical flow interface) parameters
Accutacy 0.5%
Time delay
