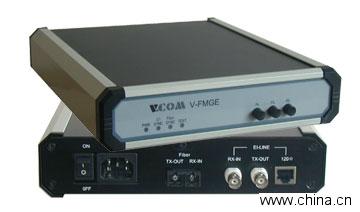

Fiber Optic Modem:FME is a Fiber Optic Equipment product. Key specs — Origin: China (Mainland).
Product Description
nbsp
Features & Benefits
nbsp
>> FME is high-speed fiber optic modem with remote terminal collocated designed with ASIC lines technology.
gt;> Optional data transmitting speeds are from N*64K(N=1-31) to 2048Kbps.
gt;> Fiber interface: SC single module Transmitting distance: 0-60km.
gt;> The product is fully according with Part 15 of FCC regulation.
gt;> FME has the function of remote terminal collocated. The FME speed of consumer terminal follows the FME collocation of master terminal automatically without doing any setup.
gt;> There are many director LEDs on the front panel to display work state and lines status of the equipment.
gt;> Data interface of FME can be V.35 or G.703.
gt;> Speed of G.703/E1 supports frame and non-frame.
gt;> FME line interface: impedance 120OHM(RJ45)/75OHM(BNC) optional
gt;> Two type of machines: platform model and frame model power supply: 220 V AC and -48V DC optional
Overview
nbsp
FME is high-speed fiber optic modem with remote configuration based on ASIC circuitry technology. It supports user-selectable rates between N*64kbps (N=1--31) and 2048 kbps. The fiber interface is SC single module. Transmission distance is up to 60km. The product fully conforms to Part 15 of FCC regulation.
FME has the function of remote configuration. The FME rate of user terminal follows the configuration of the FME of master terminal automatically without requiring any setup.
Data interface of FME can be V.35 or G.703. E1 Rate supports framed mode and unframed mode, which are known as N*64 Kbps (N=1--31) and transparent 2048 Kbps. External clock, internal clock, and slave clock are supported.
FME has the function of integrated diagnosis. It can perform tests of local analog loop back and remote digital loop back to carry out port-to-port integrity test.
Specifications
nbsp
Fiber optic modes
nbsp;8.3/125μm 8.7/125μm 9/125μm 10/125μm single module
nbsp
Transmission distance 0-60Km
nbsp
Fiber optic interface
nbsp;SC
nbsp
Length of working wave
nbsp;Options: 1310nm 1550nm
nbsp
Transmitting electrical level
nbsp;0~6dBm
nbsp
Receiving sensitivity
nbsp;–36dBm
nbsp
Decaying
nbsp;1310nm window0.4dB/km, 1550nm window 0.25dB/km
nbsp
Data interface
nbsp;V.35 mode: FMVE, G.703 mode: FMGE
nbsp
Data rate
nbsp;N*64Kbps(N=1--31); 2048Kbps
nbsp
Transmission mode
nbsp;synchronous
nbsp
Line interface
nbsp;BNC;RJ45
nbsp
Transmission Features
nbsp;conforms to G.703
nbsp
Clock
nbsp;line clock, external clock, internal clock
nbsp
Test methods
nbsp;local analog loop back, remote digital loop back
nbsp
DCE interface
nbsp;V.35 or V.24/RS232C
nbsp
Power supply
nbsp;220VAC+-10%,50Hz; 48VDC(optional)
nbsp
Power consumption
nbsp;5W
nbsp
Dimension
nbsp;225mm*145mm*40mm, 9"L*5.8"W*1.6"H
nbsp
Temperature
nbsp;0 o C ~40 o C
nbsp
Humidity
nbsp;0~95%
nbsp
nbsp
nbsp
