Listing ID#10009167
ModelFC-SC-LC-ST-JR-MU etc
CategoryFiber Optic Equipment
Quick answer

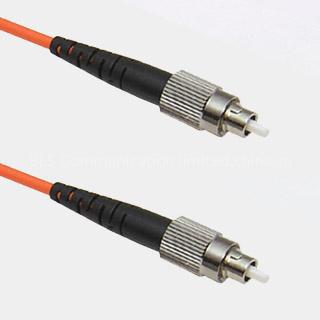

Fiber Optic Cables is a Fiber Optic Equipment product. Key specs — Origin: China; Price Term: FOB.
Product Description
Item | Mode Type | PC | SPC | UPC | APC |
Insertion Loss | SM | ≤0.20dB | ≤0.20dB | ≤0.20dB | ≤0.20dB |
MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
Repetition Test | Additional Loss≤0.1dB, Reture Loss Variability<5dB | ||||
Temperature Stability(-40°C~85°C) | Additional Loss≤0.2dB, Reture Loss Variability<5dB | ||||
Operating Temperature | -40°C~+75°C | ||||
Storage Temperature | -40°C~+85°C | ||||
-Option:CableDiameters 0.9,2mm,3mm&others | |||||
-Type:simplex,duplex,Matrial Type: pvc, hytrel, LSZH, OFNP, OFNR | |||||
