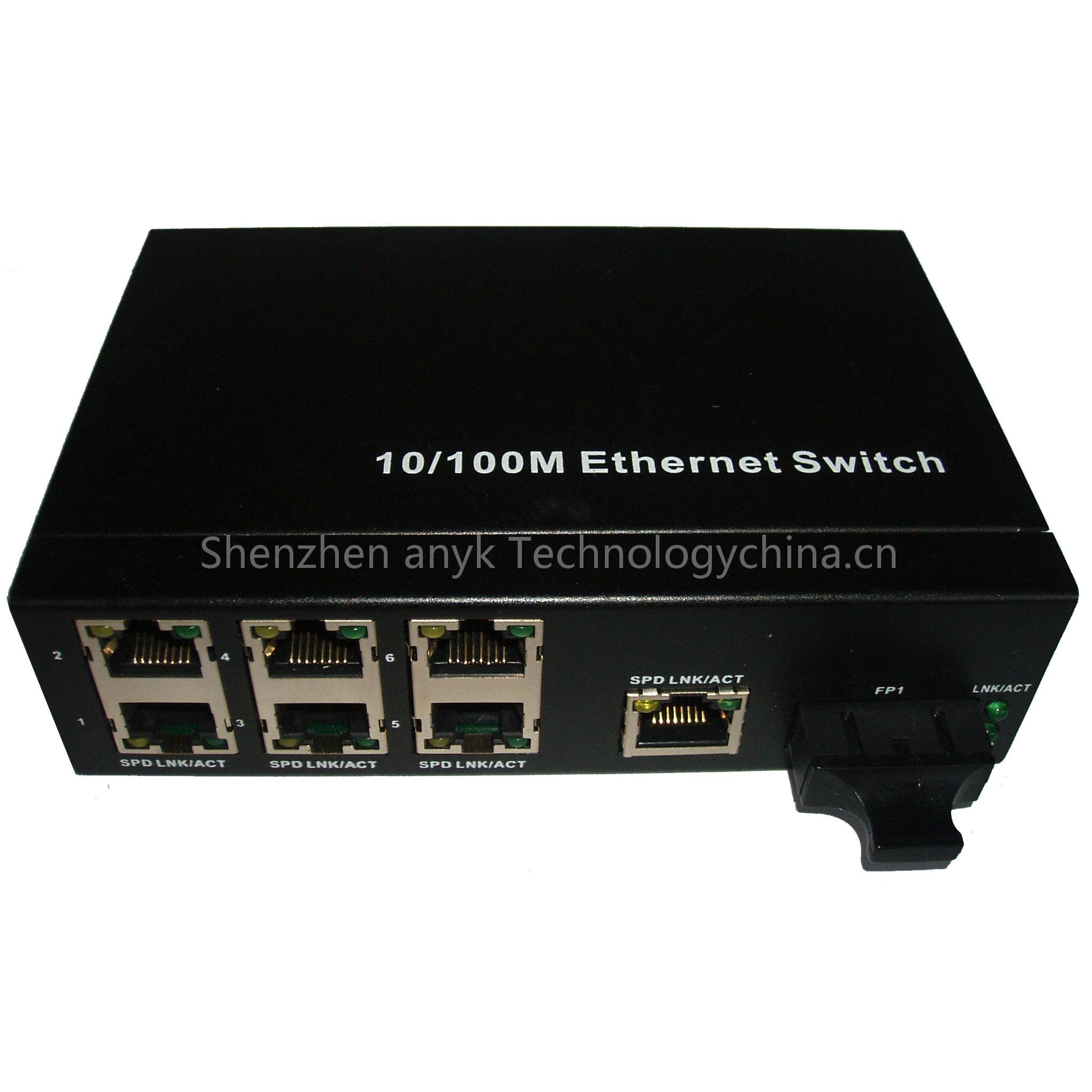

Fiber Media Converter with 7 Rj45 ports

Main features

1.In conformity to IEEE 802.3 10 Base-T standard. In conformity to IEEE 802.3u 100 Base-TX/FX standard.

2.Support 1k MAC address.

3.Power and link LED indicators

4.Back pressure flow control for full duplex IEEE 802.3X and half duplex.

5.Automatic identification of MDI/MDI-X cross line.

6.Support max forwarding packet length 1552/ 1536 bytes option.

7.In conformity to safety code of FCC and 15 CLASS A and CE MARK.

Technical parameters

1.Standard Protocol: IEEE802.3 10 Base-T standard, IEEE 802.3u 100Base-TX/FX standard

2.Connector: Seven UTPRJ-45connector,one SC/ST connector

3.Operation mode: full duplex mode or half duplex mode

4.Power supply parameter: outside: 5V DC 1A

5.Environmental temperature: 0℃-60 ℃

6.Relative humidity: 5%-90%

7.TP cable: Cat5 UTP cable

8.Transfer fiber:

a)multi-mode: 50/125, 62.5/125 or 100/140μm

b)single mode:8.3/125, 8.7/125, 9/125 or 10/125μm

Explanation for LED indicator lamp

LED indicator lamps serve as device monitoring and trouble display. The following is the explanation for each LED indicator lamp.”

1.“Link/Act”:

a)“On”: Connection status display for fiber /electric link. “ON” indicates that Fiber /electric link is in correct connection.

b)“Blink”: Active status display of fiber /electric link. “Blink” indicates packet goes through Fx /Tx end.

2.“PWR”:

a)“On”: Power is on and normal.

3.“SPD”:

a)“On”: Transfer rate of electric interface is 100Mbps.

b)“Off”: Rate of electric interface is 10Mbps.
