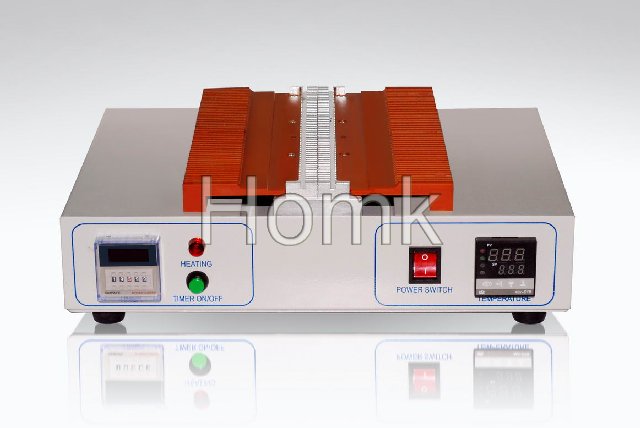

Fiber Curing Oven

Fiber curing oven

1. This fiber curing oven uses Liquid Crystal Display (LCD) to be clear, the contact surface is friendly.

2. The fiber curing oven is suits in fiber connector manufacturer, fiber curing oven uses in curing epoxy of fiber connector& ferrule

Such as FC, SC, LC, MU, MT, ST, E2000, MPO, MTRJ etc.

3. The fiber curing oven can inserts core 100 ceramic ferrule, may also curing oven 40PCS of the integral-type connector.

4. The fiber curing oven temperature and the time establishes freely, the temperature control precision is high, Precise control system, adjustable temperature 0~300degree, temperature control accuracy to +- 1 degree only. And this fiber curing oven control the heating time by designation. The fiber curing oven easy to use and dependable.

5. Curing tooling can be replace, simple operation, this fiber curing oven suitable for curing epoxy resin of various joints, improve production efficiency.

6. According to customer needs, the fiber curing oven customized with different core number and size of the curing tooling heating.

1 Technical parameters Specification

2 Heating Temperature 40-200degrees

3 Dimensions 400*320*150mm

4 Weight 7.5kgs

5 Input Voltage 100-120VAC/200-240VAC

6 Power Consumption 800W

7 Automatic Yes

8 Making Method of Parison PLD

9 Type Full-Electric Controlled

10 Warm up Time(Apporox) About 15min

11 Type of production 1.25mm, 2.5mm, SC/FC/ST/LC/MPO/MTRJ all kinds of connectors

12 Capacity 100connectors

13 Material Stainless Steel

14 Outer Case Baking Paint for Metal

15 Style Horizontal
