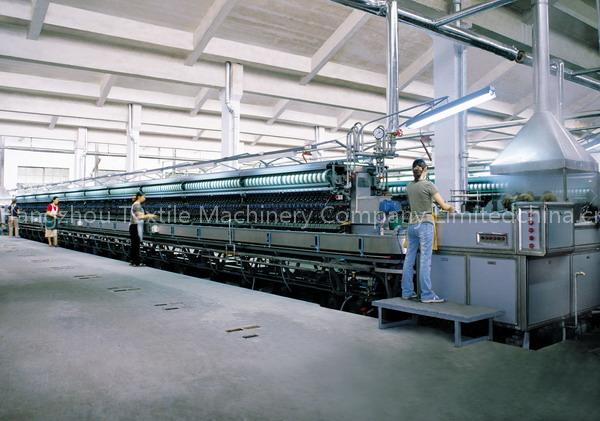

FY2000 automatic silk reeling machine

Centralized computer control systems and parameter setup by touch screen to obtain intellectualized management. Cocoon feeder system applied synchronizing frequency converter, which driven by bilaterally symmetrical form, to keep the driving in simple system, with low noisy / low consume and easy to maintain.

Detecting period for cocoon feeding is steepless control, the maximum rate for cocoon feeder is 543 times per unit per minute. With constant linear velocity, uniform yarn size and tension for the inner and outer skein layers. Fine end-picking device with combined type has the good end picking effect, high automation and low labor intensity.

Cocoon volume detecting device with two pawls and intermittent cocoon adding device should keep in synchronous movement with cocoon feeder to avoid cocoon leakage during in machine turning part. Grand reel has 6 kinds of adjusting speed, being technical adapting.

Watersupplying device for cocoon feeder and intermittent water supplying device for end feeder to keep the reeling in easy management. Performance:> No. of ends per unit: 20 ends. No. of ends per set: 400 ends. Overall dimension (L*W*H): 27936*3326*1816 mm. Net weight: 15 tons. Raw material: ratio of non-broken cocoon filament ≥55%.

Specification: 20/22D (23.3dtex), 27/29D (31.1dtex), 40/44D (46.7dtex). Grade: higher than 4A.
