(FTTH) fiber optic patch cables
Specifications
- Origin
- China
- Price Term
- FOB
(FTTH) fiber optic patch cables is a Electric Motorcycles product. Key specs — Origin: China; Price Term: FOB.
Product Description
Certification:QC

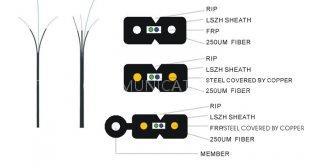

(FTTH) FIBER TO THE HOME/HOME CABLING STSTEM
Small size of fiber optic cable which with suitable for the end of the cabling.The cable is flat type which has two 250um fibers two high-strength pieces(FRP or steel cover by copper), easy to rip, can be installed conveniently and operated simply.
Technical Parameters:
Out sheath Diameter | Tight buffer Diameter | weight | Minimum allowable Tensile Strength (N) | Minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | |||
(MM) | (UM) | (KG) | Short term | Long term | Short term | Long term | Short term | Long term |
2.0×3.5 | 250 | 8.5 | 500 | 50 | 2000 | 1000 | 20D | 10D |
2.0×5.5 | 250 | 10.5 | 500 | 50 | 2000 | 1000 | 20D | 10D |
